Performance
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Internal memory |
32 MB |
| Flash memory |
64 MB |
| Modulation |
16-QAM, 64-QAM, DQPSK, DBPSK, QPSK |
| 5 GHz |
Y |
| Reset button |
Y |
| Chipset |
AR9280-AL1A |
Antenna
| Integrated antenna |
Y |
| Antenna gain level (max) |
7.5 dBi |
Power
| Power over Ethernet (PoE) |
Y |
| Input voltage |
9 - 30 V |
Ports & interfaces
| USB connector type |
USB Type-A |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
5 |
| AC adapter bundled |
Y |
OmniTIK U-5HnD, 5GHz, 7.5 dBi, AR7241-AH1A 400 MHz, 32 MB, Ethernet, 802.11a/n, PoE, USB, 9 - 30 V

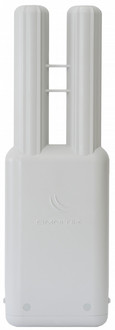

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 802.11 standard device.
Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

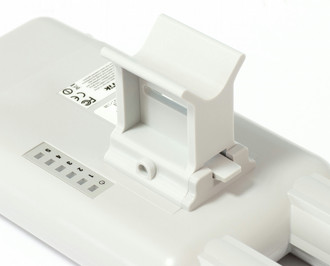

LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive. The OmniTIK runs RouterOS with all it’s features
Box contains: OmniTik U-5HnD, mounting loops, PoE injector, power adapter
