Power
| Power consumption (max) |
12 W |
| Power over Ethernet (PoE) |
Y |
| Input voltage |
15 - 57 V |
Performance
| Ethernet LAN data rates |
1000, 10, 100 Mbit/s |
| Chipset |
QCA9882-BR4A-R |
| 5 GHz |
Y |
| Channel bandwidth |
80 MHz |
| Internal memory |
128 MB |
| Modulation |
256-QAM |
Antenna
| Antenna gain level (max) |
16 dBi |
| Integrated antenna |
Y |
Ports & interfaces
| USB connector type |
USB Type-A |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| AC adapter bundled |
Y |

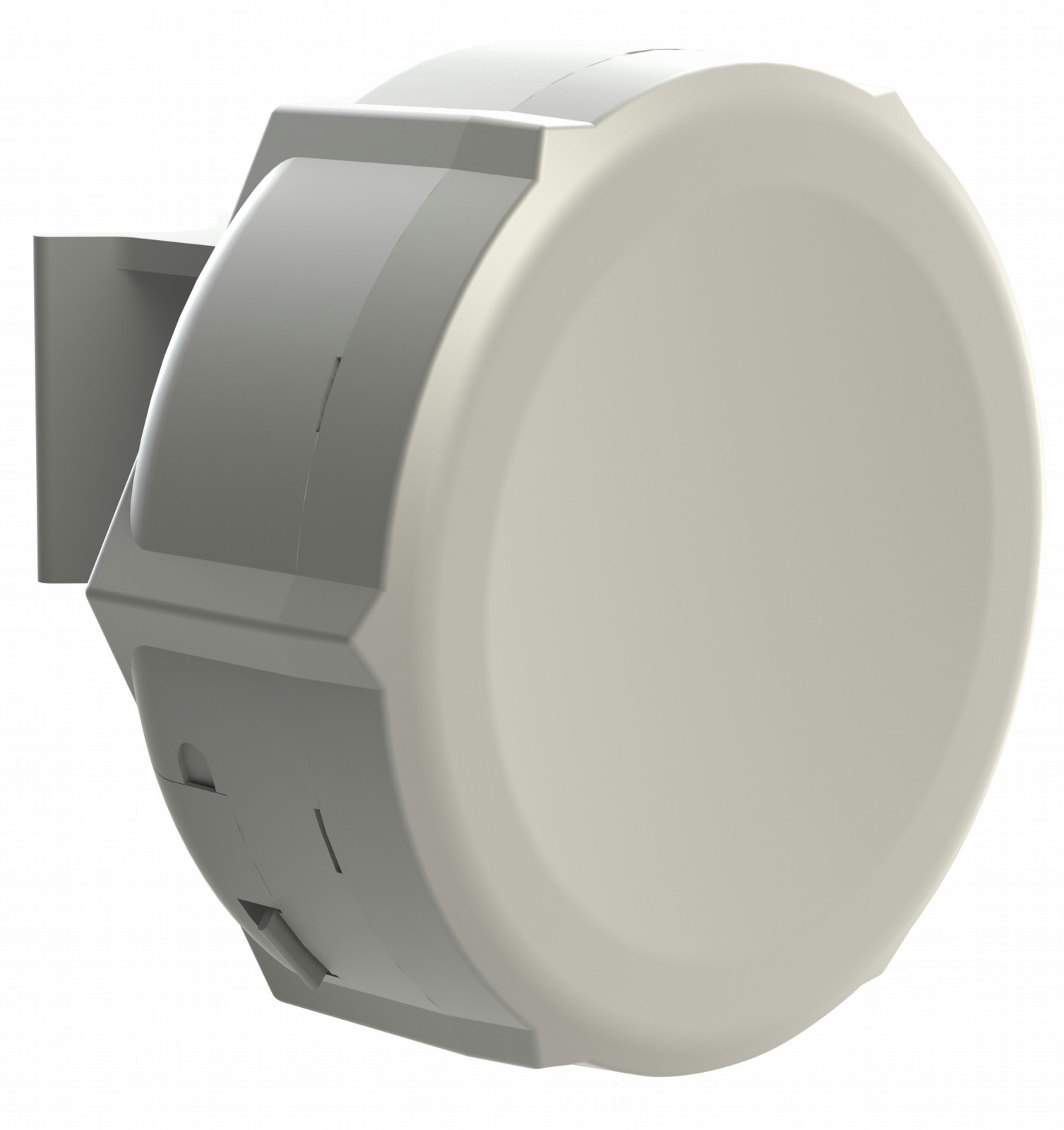

SXT 5 ac, 5 GHz, QCA9557-AT4A-R 720 MHz, 128 MB, Ethernet, 802.11a/n/ac, USB, PoE, 15-57 V
The new AC standard is here, with up to 866Mbit over the air datarate, 256-QAM modulation, and 80MHz channels. 802.11a/n/ac opens up new possibilities and speeds never possible before.
The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam- width sector antenna. Also supports 802.11a/n mode and is compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols. Both devices come with Gigabit Ethernet.
New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.
