Ports & interfaces
| USB connector type |
USB Type-A |
Power
| Input voltage |
12 - 57 V |
| Power consumption (max) |
12 W |
| Power over Ethernet (PoE) |
Y |
Performance
| Chipset |
QCA9882-BR4A-R |
| 5 GHz |
Y |
| Channel bandwidth |
80 MHz |
| Internal memory |
128 MB |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Other features
| Vertical beam width |
24 ° |
| Wireless standard |
a/n/ac |
Antenna
| Integrated antenna |
Y |
| Antenna gain level (max) |
17 dBi |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

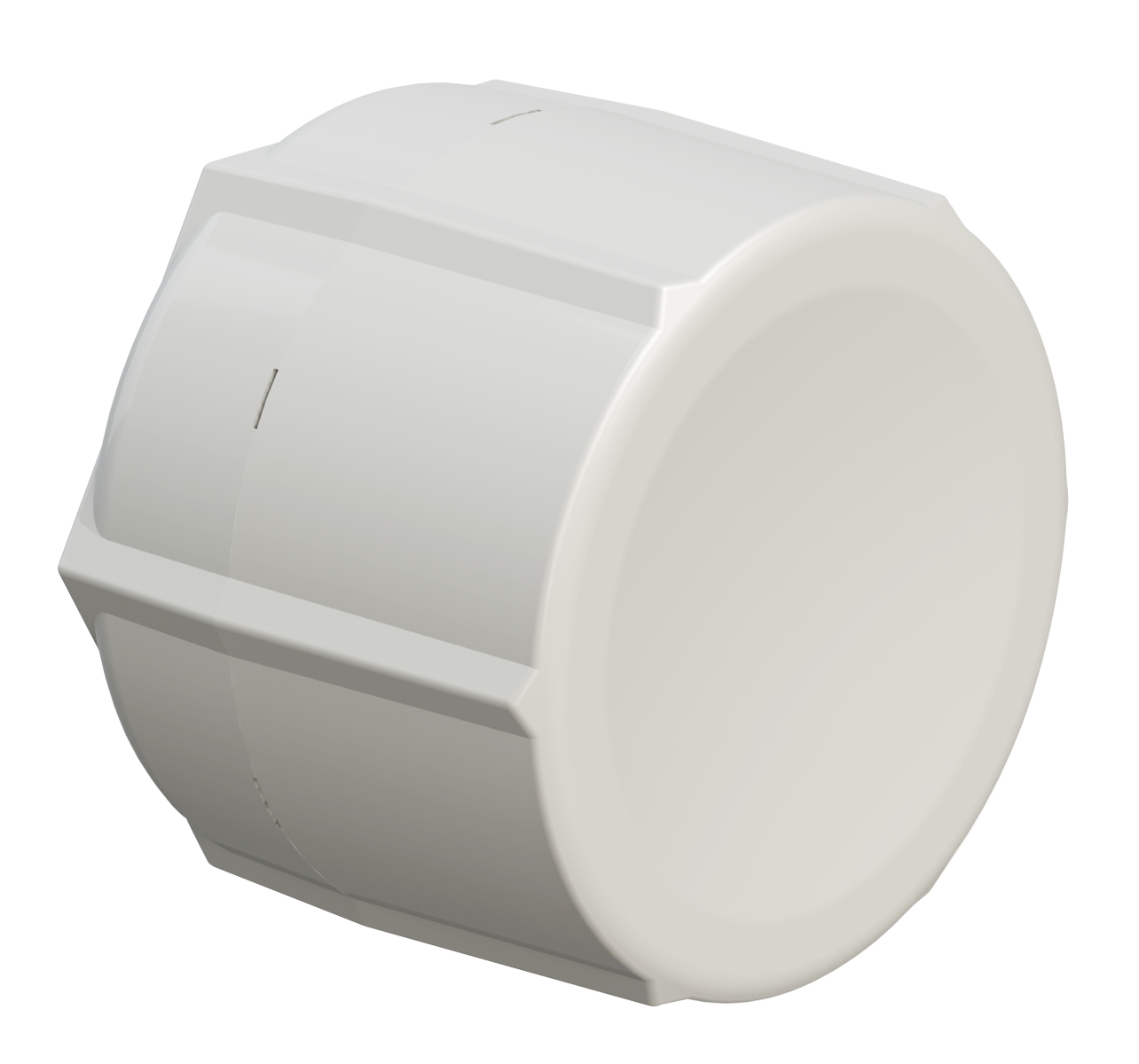

SXT HG5 ac, QCA9557-AT4A-R 720 MHz, 128 MB, Ethernet, 802.11a/n/ac, USB, PoE, 10-57 V
The new High Gain version of our popular SXT G 802.11a/n/ac model, equipped with an improved 5GHz 17dBi 24 degree antenna, Gigabit Ethernet port and RouterOS L4 license.
Like all our SXT units, this is a neat and compact outdoor device that comes with all necessary accessories included. Use it as a wireless AP, for point to point, or as a CPE unit. 802.11ac technology provides data rates up to 866Mbit, but is also backwards compatible with 802.11a/n.
The SXT HG supports 10-57V 802.3af/at and passive PoE power input.
