Storage
| Number of hard drives supported |
2 |
| Number of hard drives installed |
1 |
| Hard drive capacity |
2000 GB |
| Total installed storage capacity |
2064 GB |
| Hard drive interface |
Serial ATA, mSATA |
Power
| Power consumption (max) |
500 W |
Performance
| Built-in processor |
Y |
| Maximum frame rate |
60 fps |
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Audio system |
2-way |
| Internal memory |
4000 MB |
| Throughput data rate |
200 Mbit/s |
| Alarm output channels |
4 |
| Alarm input channels |
4 |
| Processor frequency |
3.3 GHz |
| Video input channels |
8 |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Ports & interfaces
| eSATA |
Y |
| DVI-I ports quantity |
1 |
| Microphone in |
Y |
| Line-in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
Additionally
| Выход HDMI |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
1x 2 TB SATA, 8 licenses, Intel Pentium G4400 , 8GB RAM, DVI, HDMI, 2x GbE RJ45, 4x USB 3.0, 200 Mbit/s, 430 x 330 x 88 mm, XProtect Professional 2016
<b>The easiest installation you’ve ever done</b>

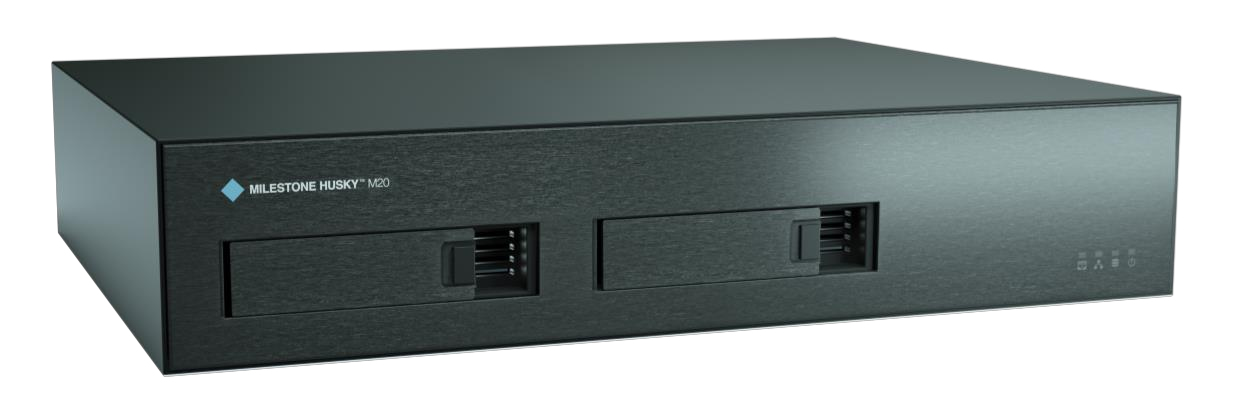

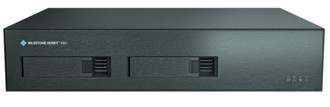

Simply connect any camera and the Husky M20 is the quickest route to a complete surveillance solution.
<b>Predictable installation every time</b>
Smart Start plug-and-play to connect cameras and configure storage
Smart Start is automatic camera discovery, IP address assignment, time synchronization and storage allocation
8 or 16 port Integrated Power over Ethernet (PoE) managed switch
PoE+ on all ports, up to 250W total power
<b>Highest performance for the mid market</b>
200 Mbit/s recording rate to handle high-megapixel cameras
Customer replaceable hard disk drives
Alarm I/O: 4 in and 4 out
Latest technology with 6th-generation Intel Skylake processors
Western Digital Purple hard disk drives made for surveillance
Supports up to 24 cameras
<b>Proven solution that works with any camera</b>
Preloaded with an NVR-optimized version of XProtect Professional
Choose from more than 5,000 cameras from more than 100 manufacturers
Industry’s best mobile app for free
Connect multiple Milestone Husky NVRs together in master/slave setup
Supports third-party integrations and Milestone add-on products
Includes 3-year hardware warranty
