Ports & interfaces
| Serial ports quantity |
1 |
| AC outlet types |
NEMA 5–15R |
| AC outlets quantity |
8 AC outlet(s) |
Other features
| Management platform |
SNMP |
| Interface |
USB, RS-232 |
| Nominal input voltage |
120 V |
| Nominal output voltage |
120 V |
Design
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
Battery
| Battery type |
12 V, 9 Amph |
| Hot-swap battery |
Y |
| Typical backup time at half load |
17 min |
| Typical backup time at full load |
7.5 min |
Power
| Efficiency |
90% |
| Power supply input frequency |
50/60 Hz |
| Surge energy rating |
1140 J |
| Output power capacity |
1000 VA |
| Output power |
700 W |
Performance
| EMI/RFI noise filtering |
Y |
Operational conditions
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |

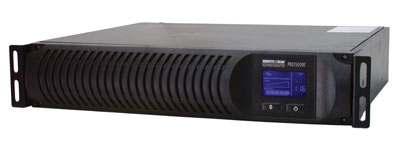

8 Outlets, 1000VA, 700W, 120 VAC, 1140J, RS-232, USB, 1 x DB-9, RJ-11/RJ-45 Protection, LCD Display, Rack/Tower 2U
Features:
- LCD Display - Shows UPS operating status
- Rack/tower installation - (2U rack height) or wall mounting with optional kit
- Minuteman SentryPlus Software - SentryPlus auto-shutdown and monitoring software is included with every unit.
- RS-232 and USB Communications - No special USB drivers are required for USB communications as unit is automatically recognized by Microsoft Windows as HID-compliant device - similar to a mouse or a keyboard.
- SNMP compatible - Each PRO-RT unit can be managed on a network with the addition of an optional SNMP management card.
- Fax/Modem/Network Line Protection - The PRO-RT UPS provides a low cost means of protecting fax/modem/network lines.
- RoHS Compliant - All PRO-RT products are manufactured using non-hazardous materials making them safer for the environment and a green-friendly addition to any data center (Excludes lead acid batteries).
- Warranty - Each PRO-RT UPS system is covered by a three-year parts and labor warranty and $100,000 Minuteman Platinum Protection Plan (U.S.A. and Canada only).
