Loudspeakers
| Woofer |
Y |
| Tweeter diameter |
1 " |
| Woofer diameter (imperial) |
5 " |
| Amplifier class |
D |
| Tweeter |
Y |
| Number of speakers |
1 |
| Amplifier |
Built-in |
Design
| Display included |
Y |
| Battery charging indication |
Y |
| Handle(s) |
Y |
| Display type |
LCD |
| Type |
Handheld Public Address (PA) system |
Power
| Standby time |
8 h |
| Battery voltage |
14.8 V |
| Charging time |
4 h |
| Power source type |
Battery, AC |
Ports & interfaces
| AC (power) in |
Y |
| Headphone connectivity |
6.3 mm |
| Compatible memory cards |
SD |
| Microphone in |
Y |
| Card reader integrated |
Y |
| USB ports quantity |
1 |
Audio
| Total Harmonic Distortion (THD) |
1% |
| Sensitivity |
105 dB |
| Frequency range |
50 - 18000 Hz |
Additionally
| Battery performance |
2600 mAh |
| Wireless technologies |
Wired & Wireless |
56 W, 96-105 dB, 50 Hz - 18 kHz, 6.3mm, USB 2.0, SD, AC/DC, 14.8V/2.6a Ah, 163 x 306 x 206 mm, 3100 g

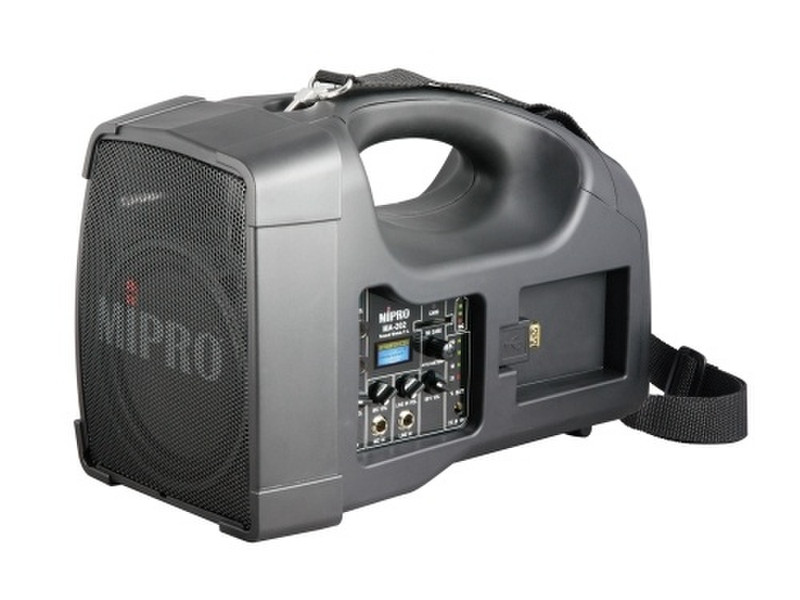

MA-202 is the flagship of personal wireless PA systems. This powerful system boasts versatile feature such as built-in convenient storage compartment and battery charger for ACT-202T handheld transmitter microphone. Lightweight, robust and battery operated, it is an ideal public address solution for small to medium crowds.
Ideal applications include:
- School classrooms
- Places of worship
- Presentations, seminars and meetings
- Day-care activities; playground duty
- Tour guides & Paging
- Fire fighters, law enforcement, search & rescue
- Street performers
- Factory or company tours
- Culmination of personal wireless PA designs.
- Light, compact and portable design.
- Powerful and crystal-clear sound projection.
- High efficiency class-D amplifier drives 2-way loudspeakers with level limiter.
- Built-in 1 diversity receiver for reliable, extended reception range.
- One-touch Scan & ACT sync buttons for fast and easy channel set-up.
- AC and lithium rechargeable battery operation.
- Up to 8-hour of stand-by time per 4-hour full charge.
- USB & SD music player with LCD screen and individual volume controls. Plays MP3 files.
- Optional ACT-30H handheld transmitter for improved sound quality.

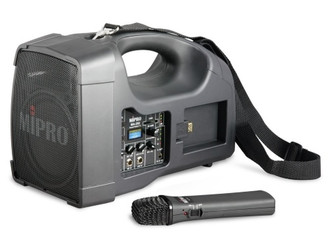

- Convenient storage compartment and battery charger for ACT-202T handheld microphone.
- 4-segment battery meter for accurate MA-202 battery readings and charging status.
- 3-segment battery meter for accurate ACT-202T battery readings and charging status.
- Receiver volume can be adjusted by MA-202 volume control or wirelessly via ACT-202T.
