Multimedia
| Analog signal format system |
NTSC, PAL, SECAM |
| Built-in subwoofer |
N |
| TV tuner integrated |
N |
| Built-in camera |
N |
Display
| Display diagonal |
65 " |
| Vertical scan range |
58 - 85 Hz |
| Viewable size, horizontal |
1427 mm |
| Viewable size, vertical |
802.6 mm |
| Aspect ratio |
16:9 |
| HD type |
Full HD |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Contrast ratio (typical) |
4000:1 |
| Display resolution |
1920 x 1080 pixels |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Pixel pitch |
0.744 x 0.744 mm |
| Display brightness |
700 cd/m² |
| 3D |
N |
| Display |
LCD |
Ports & interfaces
| Composite video in |
1 |
| AC (power) in |
Y |
| PC Audio in |
Y |
| DVI-D ports quantity |
1 |
| Audio input |
Y |
| Audio output |
Y |
| Composite video out |
1 |
| Component video (YPbPr/YCbCr) in |
5 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
2 |
Weight & dimensions
| Bezel width (top) |
30.4 mm |
| Bezel width (bottom) |
30.4 mm |
| Bezel width (side) |
30.4 mm |
| Depth |
139.7 mm |
| Width (with stand) |
1499 mm |
| Weight |
46490 g |
| Width |
1499 mm |
| Height |
873.8 mm |
Power
| Power consumption (typical) |
445 W |
Ergonomics
| Picture-in-Picture |
Y |
| VESA mounting |
Y |
Thin Client
| Thin client installed |
Y |
| Flash memory |
4096 MB |
Performance
| Mean time between failures (MTBF) |
50000 h |
Additionally
| Display scan frequency (horizontal) |
31.5 - 91.1 kHz |
| Colour of product |
Black |
| S-Video in |
1 |
| RS-232 port |
2 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Energy efficiency compliance |
Unspecified |

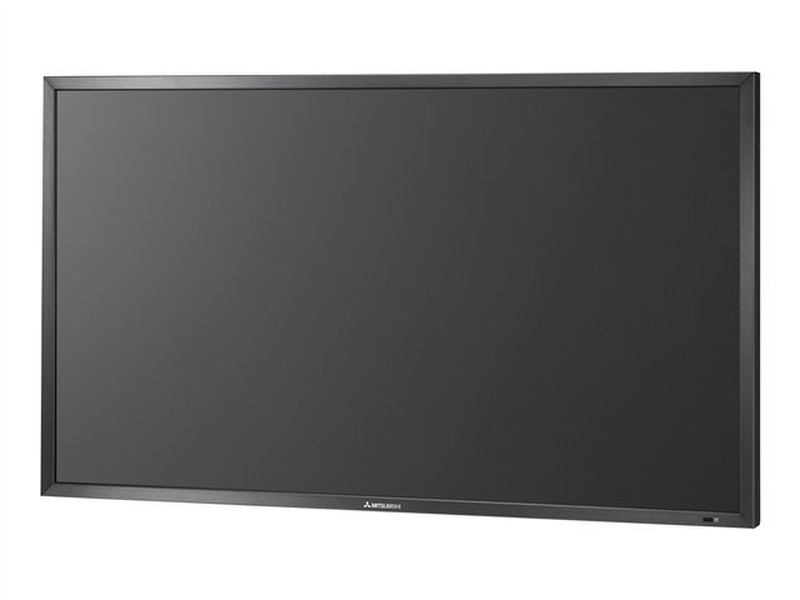

M652-ID3450 - 65" LCD, 1920 x 1080, 16:9, 700cd/m2, 4000:1, 8ms, 46.49kg, Black
Built-in CAT5 Receiver
Video signal through CAT5
Dual Ambient Light Sensors
Adjusts monitor brightness based on ambient light
Power Save
Increased protection against image retention and image persistence
Picture-in-Picture
Show two active input displays simultaneously
Native 1920×1080 Resolution
The MDT652S High Definition widescreen LCD monitor brings full HD 1080P to our line in a bright 65″ digital display with native 1920×1080 resolution. Use this display monitor to build amazing entertainment and digital signage displays. These monitors are also ideal for message boards, video conferencing, classroom presentations, retail kiosks, or gaming displays, or to enhance your facilities with welcome messages, company promotions, or human resources information.
Features Designed for Your Application
The MDT652S monitor answers your need for digital signage, message boards, video conferencing, retail kiosks, or broadcast displays to enhance your facilities with everything from advertising to welcome messages to vital, up-to-the-minute news and information. And versatility is engineered into every one: Inputs range from DVI-D, D-Sub 15 and HDMI. The MDT652S features a built-in CAT5 receiver and comes with an accompanying transmitter box, and even utilizes Mitsubishi’s own networking software for remote management.
Automatically Adjusts Brightness
The MDT651S LCD display monitor also features both front and rear ambient light sensors for the ultimate in installation flexibility. The monitor automatically adjusts its brightness based on the ambient light ensuring your message is always clear and vibrant.
The XMP-3250 and XMP-3450 are engineered for trouble-free, plug-and-play professional digital signage. An internal timer lets the player recover and resume playback from power, network, or other disruptions. The all metal enclosure provides reliable passive cooling and features screw-lock connectors to prevent loose cables. Covered CF card slot lets you expand beyond the 4GBs of built-in solid-state local storage while protecting contents. Enjoy all the benefits of an industrial media player without the cost and uncertainty of complex, multi-purpose systems.
