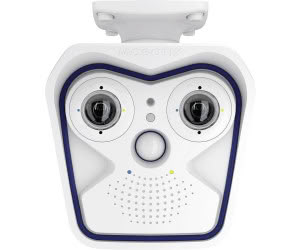

Mobotix Mx-M16B-6D6N036

Camera types: IP camera, PTZ camera

Equipment
Equipments: with integrated speaker, with microphone
Functions: Mmotion detection, ONVIF, electronic panning, tilting, zooming (ePTZ), tampering detection
Video functions: with recording function, with multi-streaming
Number of cameras: 1
supported memory cards: microSD
Connections: USB, USB 2.0, M12, RJ-45
Sensors: Shock sensor, temperature sensor, PIR sensor
Power supply: PoE (Power over Ethernet)

Housing
Housing color: white
Mounting types: Surface mounting, ceiling mounting, wall mounting
Areas of application: inside, outside
Outdoor function: weatherproof
Temperature range: -40 to 60 °C
Weight: 1.160 g
Dimensions (W x H x D): 158 x 210 x 207 mm

Network
Interfaces: LAN, RJ45
LAN standard: Ethernet 10/100

Objective
Objective properties: fixed focal length
Lens mount: M12

Video & Image
Resolution: 3.072 x 2.048 Pixel
Images per sec.: 30
horizontal viewing angle: 103 °
vertical field of view: 77 °
Sensor type: 1/1,8" Progressive Scan CMOS
Pixel sensor: 6 Megapixel
Video formats: H.264, MJPEG
Video recordings: HD, color, Full HD
Audio formats: G.711, G.722
Image file format: JPEG

Further properties
Scope of delivery: User manual, network cable, mounting material, SD card (4 GB)
