Other features
| Supported data transfer rates |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps |
| Connectivity LEDs |
Y |
| Electromagnetic emissions |
FCC 15C |
| Non-operating relative humidity (non-condensing) |
5 - 95% |
| Safety |
EN60950-1: 2001, UL60950-1 |
| Compliance industry standards |
IEEE 802.11g/b, IEEE 802.3u, IEEE 802.3a, IEEE802.3af, IEEE 802.1X |
Security
| Authentication method |
RADIUS |
| Security features |
802.11b:\n-81 dBm @ 11 Mbps, -85 dBm @ 5.5 Mbps,\n-86 dBm @ 2 Mbps, -87 dBm @ 1 Mbps\n802.11g:\n-68 dBm @ 54 Mbps, -70 dBm @ 48 Mbps,\n-74 dBm @ 36 Mbps, -78 dBm @ 24 Mbps,\n-81 dBm @ 18 Mbps, -84 dBm @ 12 Mbps,\n-85 dBm @ 9 Mbps, -86 dBm @ 6 Mbps |
| MAC address filtering |
Y |
Ports & interfaces
| Cabling technology |
10/100BaseT(X) |
| Interface |
RJ-45 |
Performance
| Universal Plug and Play (UPnP) |
Y |
| 2.4 GHz |
Y |
| Web-based management |
Y |
| Frequency band |
2.4 - 2.4835 GHz |
| Channels quantity |
13 channels |
Protocols
| Management protocols |
SNMP |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
HTTP, DHCP, TCP/IP, RADIUS, DNS, NetBIOS, AppleTalk, IPX/SPX |
Antenna
| Antenna gain level (max) |
2 dBi |
Power
| Power over Ethernet (PoE) |
Y |
Additionally
| Transfer rate (Mbps) |
54 Mbit/s |

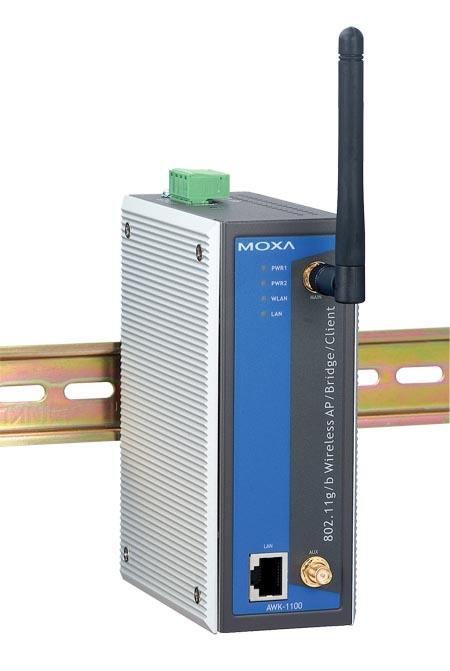

AWK-1100 Industrial IEEE 802.11g/b Wireless AP/Bridge/AP Client
Do you have some hard-to-wire situations? Do your applications use mobile equipment which is connected over a TCP/IP network? Or you have cost concern for installing wire? Now you have a ideal solution, the AWK-1100 Access Point/Bridge/AP Client. AWK-1100 is rated to operate at temperatures ranging from 0 to 60°C and is rugged enoughfor any harsh industrial environment. Installation is easy, with either DIN-Rail mounting or distribution boxes. The DIN-rail mounting ability, wide operating temperature range, and IP30 case with LED indicators make AWK-1100 a convenient and yet reliable solution for your industrial wireless applications.
Advanced Security Capability
-64-bit and 128-bit WEP (Wired Equivalent Privacy).
-Enable/disable SSID broadcasts.
-MAC-address-based access control.
-IEEE 802.1X/RADIUS.
-WPA (Wi-Fi Protected Access).
Useful Utilities and Remote Configuration
-Firmware upgrade from TFTP or HTTP.
-Configuration backup and reset.
-Web-based management.
-Supports SNMP and UPnP.
Industrial-grade Design
-Operating temperature range from 0 to 60°C.
-Power input by redundant 24 VDC power inputs or Power-over-Ethernet.
-DIN-Rail or panel mounting capability.
-Case design meets IP30 protection standard.
