Other features
| Supported data transfer rates |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 |
| Safety |
EN60950-1: 2001, UL60950-1 |
| Rack mounting |
Y |
| Compliance industry standards |
IEEE 802.11g/b, IEEE 802.3u |
| Networking features |
Wireless LAN, Ethernet LAN |
Ports & interfaces
| Cabling technology |
10/100BaseTX |
| Interface |
LAN |
Performance
| Receiver sensitivity |
802.11b:\n-81 dBm @ 11 Mbps\n802.11g:\n-65 dBm @ 54 Mbps, -66 dBm @ 48 Mbps,\n-70 dBm @ 36 Mbps, -74 dBm @ 24 Mbps,\n-77 dBm @ 18 Mbps, -79 dBm @ 12 Mbps,\n-81 dBm @ 9 Mbps, -82 dBm @ 6 Mbps |
| 2.4 GHz |
Y |
| Web-based management |
Y |
| Frequency band |
2.4 - 2.4835 GHz |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Channels quantity |
13 channels |
Antenna
| Antenna gain level (max) |
9 dBi |
Power
| Power over Ethernet (PoE) |
Y |
| Input current |
0.375 A |
Protocols
| Supported network protocols |
HTTP, DHCP, TCP/IP, RADIUS, DNS, NetBIOS, AppleTalk, IPX/SPX |
Additionally
| Transfer rate (Mbps) |
54 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |

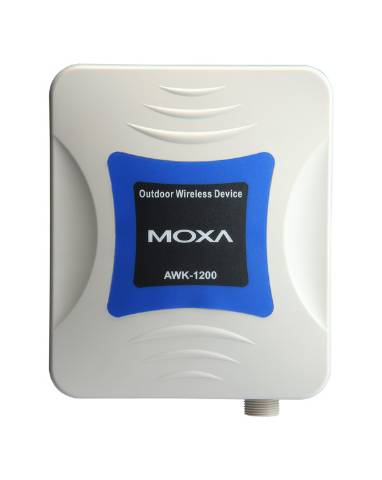

IEEE802.11g/b IP67 wireless AP client, -20 to 70° C, Euro band
The AWK-1200 Access Point/Bridge or AP Client is ideal for applications that are hard to wire, too expensive to wire, or use mobile equipment that connects to a TCP/IP network. The AWK-1200 series is rated to operate at temperatures ranging from -20 to 70°C, and its
weatherproof design allows you to set up a WLAN, or extend existing wired networks to outdoor locations. In addition, the AWK-1200 has a detachable antenna design, which gives you the flexibility of choosing your own special-purpose antennas instead of using the standard models. You also don’t need to worry about finding a power supply in outdoor environments, since the AWK-1200’s PoE (Power over Ethernet) design makes it easy to deploy.
