Features
Power LED |
Y |
Connectivity LEDs |
Y |
Networking
Networking features |
M12/SFP |
Compliance industry standards |
802.11a/b/g/n |
Full duplex |
Y |
Management features
Supported protocols |
Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP |
DHCP server |
Y |
DHCP client |
Y |
Power
Power over Ethernet (PoE) |
Y |
Wireless LAN features
Modulation |
16-QAM, CCK, 64-QAM, DQPSK, OFDM, BPSK, DSSS, DBPSK, QPSK |
Frequency band |
2.412 - 2.472, 5.18 - 5.24 GHz |
Certificates
Safety |
UL 60950-1, EN 60950-1 |
Antenna
Antenna connector type |
N-type |
Operational conditions
Operating temperature (T-T) |
-40 - 167 °F |
Additionally
Transfer rate (Mbps) |
300 Mbit/s |
Wireless technologies |
Wireless |
IEEE 802.11a/b/g/n, One M12/SFP Gigabit, Up to 300 Mbps, IP68, PoE, EU
<b>Features and Benefits</b>
- IEEE 802.11a/b/g/n compliant
- One M12/SFP Gigabit combo port
- Up to 300 Mbps data rate
- M12 anti-vibration connector
- Compliant with essential sections of EN 50155
- MIMO technology increases data throughput and range
- Rugged IP68-rated housing and -40 to 75°C operating temperature
<b>Introduction</b>

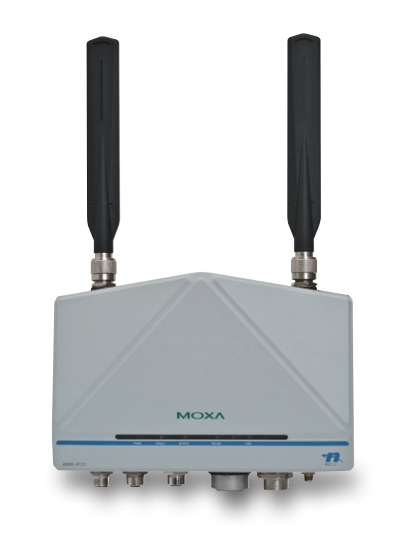

The AWK-4131 is a 3-in-1 industrial wireless AP/bridge/client that meets the growing need for faster data transmission speeds and wider coverage by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. The AWK-4131 is compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD and vibration. With a wide -40 to 75°C operating temperature and dust-tight/weatherproof IP68-rated design, the AWK-4131 allows you to extend existing wired networks to outdoor locations. The AWK-4131 can operate on either the 2.4 or 5 GHz bands and is backwards-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments.
<b>Higher Data Rate and Greater Bandwidth</b>
- High-speed wireless connectivity with up to 300 Mbps data rate
- MIMO technology to improve the capacity of multiple data stream transmits and receives
- Increased channel width with channel bonding technology
<b>Industrial and Outdoor Features for Critical Environments</b>
- Industrial-grade QoS and VLAN for efficient data traffic management
- IP68-rated metal housing and -40 to 75°C wide operating temperature
- PoE and dual DC power inputs
- Integrated DI/DO for on-site monitoring and warnings
