Processor special features
| Processor ARK ID |
43098 |
| Processor code |
SLBLA |
| Intel 64 |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Supported protocols |
DHCP, DNS, FTP, HTTP, SNTP, NTP, Telnet, SMTP, SNMPv2, TCP, UDP, IPv4, ICMP, IGMP, IPsec, TAPI, ICS, PPP, CHAP, EAP, PPPoE, PPTP, NetBIOS, PTP |
Processor
| Processor codename |
Pineview |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| Processor operating modes |
64-bit |
| Processor socket |
BGA 559 |
| Stepping |
B0 |
| Processor cores |
2 |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Maximum internal memory supported by processor |
4 GB |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
176 M |
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Processor frequency |
1.66 GHz |
| ECC supported by processor |
N |
| Bus type |
DMI |
Memory
| Memory clock speed |
667 MHz |
| Memory layout (slots x size) |
1 x 1 GB |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
2 GB |
| Internal memory type |
DDR2-SDRAM |
| Internal memory |
1 GB |
Packaging content
| Drivers included |
Y |
| Display included |
N |
Graphics
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter |
Y |
Ports & interfaces
| RS‐232/422 port |
Y |
| PS/2 ports quantity |
1 |
| Microphone in |
N |
| Serial ports quantity |
2 |
| DVI port |
Y |
Storage
| Compatible memory cards |
CF, CF Type II |
| Total storage capacity |
2 GB |
| Card reader integrated |
Y |
| Storage media |
Flash |
| Number of storage drives supported |
2 |
| Hard drive interface |
Serial ATA |
Power
| Power supply input voltage |
100 - 240 V |
| Power supply |
40 W |
| Power supply input frequency |
50/60 Hz |
Performance
| Watch Dog function |
Y |
| Motherboard southbridge |
Intel ICH8M |
Software
| Pre-installed software |
Windows Embedded Standard 2009 |
| Operating system architecture |
32-bit |
Additionally
| Chipset |
Intel Pineview-D |
| Processing die size |
87 mm² |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |

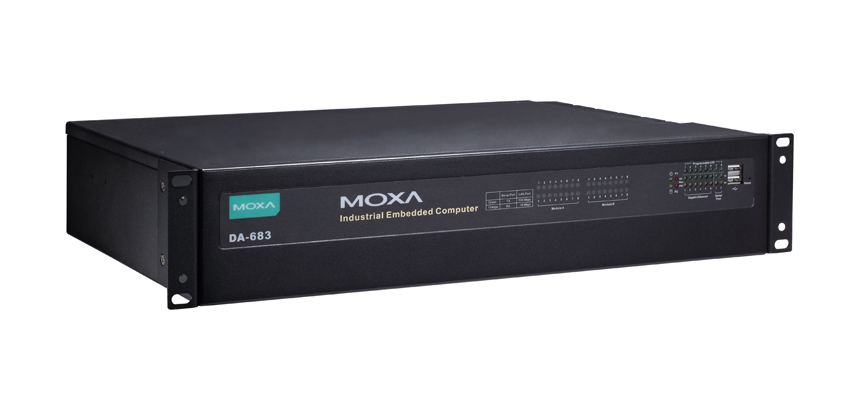

IEC 61850-3 x86 ready-to-run rackmount computer with 1.66 GHz CPU, DVI-I, 6 Giga LANs, 2 RS-232 serial ports, 4 DIs, 4 DOs, 2 peripheral expansion slots, CompactFlash, 4 USB ports, dual power, Windows Embedded Standard 2009, -40 to 70°C operating temperature
DA-683 industrial computers excel in a wide array of power automation applications. The DA-683 series is based on the Intel x86 processor and supports DVI-I, 6 gigabit Ethernet ports, 2 RS-232 serial ports, CompactFlash, and USB. They come standard in a 19-inch, 2U high form factor. The Intel Atom D510 processor gives the DA-683 enough punch to perform demanding industrial tasks without consuming a lot of power, for a highly cost-effective overall system. DA-683 computers are IEEE 1588 compliant and support precision time protocol and clock synchronization to provide the time accuracy required for event logging in power substation systems.
IEC-61850-3 compliance confirms that the DA-683 can deliver stable and reliable system operations in power applications. Additional value and convenience is provided through a modular design with two independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including an 8-port RS-232/422/485 module, 8-port RS-422/485 module, 4-port 10/100 Mbps LAN module, 8-port 10/100 Mbps switch module, and a universal PCI expansion module.
The DA-683 series includes wide temperature models that operate reliably in a -40 to 70°C operating temperature range for the same great performance in applications in extremely harsh environments.
DA-683 computers run Linux, Windows Embedded Standard 2009, or Windows Embedded Standard 7 (pre-installed), providing a familiar environment for developing sophisticated application software. Moxa provides comprehensive software support to help programmers develop bug-free code quickly and at a lower cost.
