Protocols
| Switching protocols |
SNMPv1/v2c/v3 |
| Routing protocols |
RIP-1, RIP-2 |
| Management protocols |
TFTP, NTP, HTTP, HTTPS, Telnet, SSH, Syslog, SMTP, LLDP, PPPoE, PPTP, Dynamic DNS, QoS, VRRP |
| DHCP client |
Y |
| DHCP server |
Y |
Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| Fiber ports quantity |
3 |
| DC-in jack |
Y |
Security
| NAT functionality |
N- - -1, 1- - -1 |
| MAC address filtering |
Y |
Certificates
| Safety |
UL 508, UL 60950-1 |
Management features
| Quality of Service (QoS) support |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
3 |
3x RJ45/fiber combo port, 10/100/1000BaseT(X), 100/1000BaseSFP, Digital Input, Firewall/NAT, 25 VPN Tunnels, IP 30, 0 - 60°C
- Firewall/NAT/VPN/Router all-in-one
- High performance Gigabit copper/fiber combo port
- WAN redundancy function with 2 WAN interfaces and 1 LAN interface
- Firewall with Quick Automation Profile for Fieldbus protocols
- Network address translation (N-to-1, 1-to-1, and port forwarding)
- VPN security with IPSec, L2TP, and PPTP functions
- Intelligent PolicyCheck and SettingCheck tools
- 40 to 75°C operating temperature range (T model)
- NERC CIP compliance

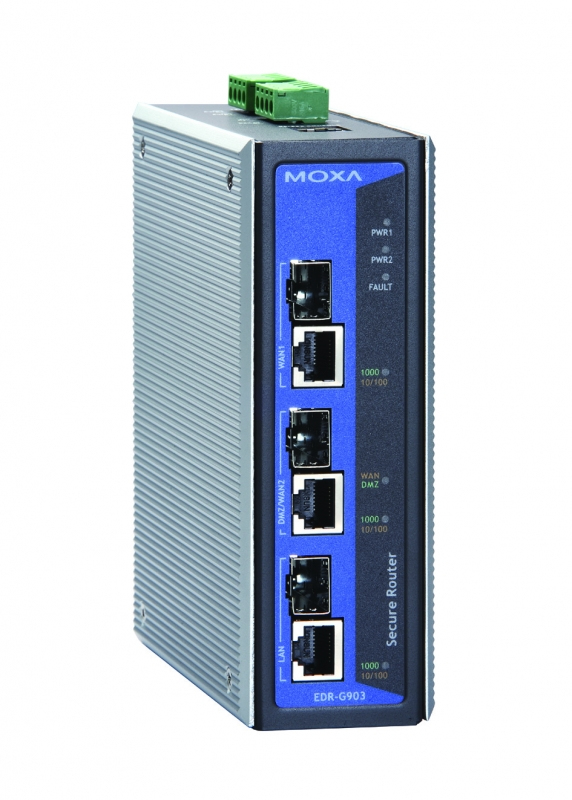

The EDR-G903 series is a Gigabit performance, all-in-one Firewall/VPN/Router. It is designed for Ethernet security applications in sensitive remote control or monitoring networks, and provides an Electronic Security Perimeter for the protection of critical cyber assets. The EDS-G903 series Cyber Security features include:
Firewall: Controls network traffic between different trust zones.Network Address Translation (NAT), which shields the internal LAN from unauthorized activity from outside hosts, is included.
Virtual Private Networking (VPN)*: VPNs are designed to provide users with secure communication links when accessing a private network from the public Internet. Uses IPSec (IP Security) for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.
The EDR-G903 supports one WAN, one LAN, and a userconfigurable WAN/DMZ interface that provides high flexibility in different applications such as WAN redundancy or Data/FTP server security protection. The EDR-G903's Quick Automation Profile function supports most common Fieldbus protocols, including EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus/TCP, and PROFINET. Users can easily create a secure Ethernet Fieldbus network from a user-friendly web UI with a single click operation. In addition, wide temperature models are available that operate reliably in hazardous, -40 to 75°C environments.
