Data transmission
| Maximum data transfer rate |
0.1 Gbit/s |
Other features
| Electromagnetic emissions |
FCC Part 15, CISPR (EN55022) class A |
| Mounting interface |
DIN-Rail |
| Installed ports |
7 x 10/100BaseT(X), 1 x mult mode 100 BaseFX |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
Networking
| Flow control support |
Y |
| Full duplex |
Y |
System requirements
| Media types supported |
IEEE802.3, 802.3u, 802.3x |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

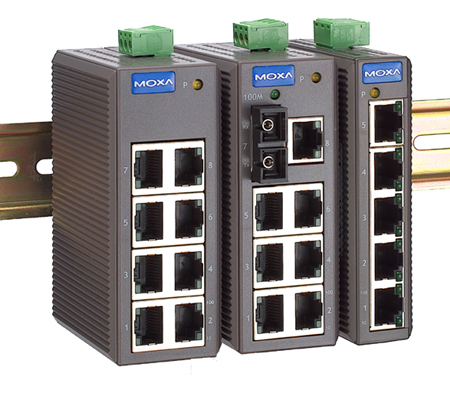

EDS-208-M-SC Entry-level Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 mult mode 100 BaseFX port, SC connector, Operating Temperature of -10 to 60°C
The EDS-208/205 series of industrial Ethernet switches are entry-level industrial 8/5-port Ethernet switches that support IEEE802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. EDS-208/205 series switches are rated to operate at temperatures ranging from -10 to 60°C, and are rugged enough forany harsh industrial environment. EDS-208/205 series switches can be easily installed with DIN-Rail mounting as well as distribution boxes. The DIN-rail mounting ability, wide operating temperature, and the the IP30 case with LED indicators make the plug-and-play EDS-208/205 switches easy to use and reliable.
High Performance Network Switching Technology
-10/100BaseT(X) (RJ45) and 100BaseFX (Multi mode, SC/ST connector).
-Broadcast Storm Protection.
-IEEE 802.3/802.3u/802.3x supports.
-Store and Forward switching process type.
-10/100M, Full/Half-Duplex, MDI/MDI-X auto-sensing.
Industrial Rugged Design
-Operating temperature range from -10 to 60°C.
-Case designed meets IP30 protection standard.
-Power inputs support 24 VDC or 24 VAC.
-DIN-Rail mounting ability.
Recommeded Accessories
-DR Series DIN-Rail 24 VDC power supplies.
