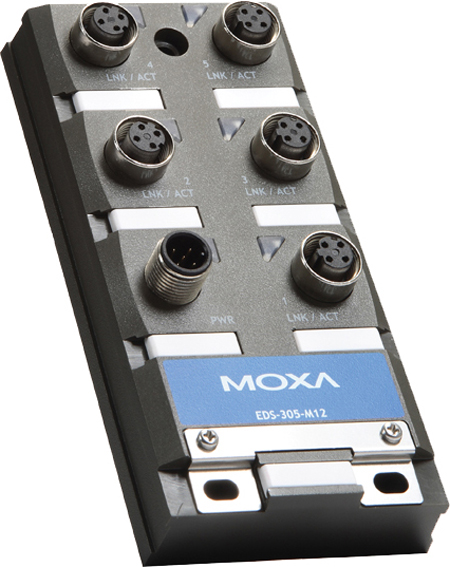

Moxa EDS-305-M12 Unmanaged Power over Ethernet (PoE) network switch

Switch EDS-305-M12 Series Industrial 5-port M12/IP67 Unmanaged Ethernet Switches MOXA's range of unmanaged Ethernet switch products has been extended with the EDS-305-M12, which is engineered to withstand rigorous use. The EDS-305-M12 has a tough casing that is IP67-rated for resistance to water, oil, and dust, and it features M12 connectors to ensure tight connections. Your network connectivity will be well-protected from environmental disturbances, such as the heavy vibration and shock encountered in transportation applications. The switch is designed so that it can be mounted directly onto a machine or onto any field surface without requiring extra protection, even in extreme outdoor conditions. The perfect mix of wide temperature range (-40 to 75°C), protection level, and mechanical stability makes the EDS-305-M12 a natural fit for all tough workplaces.

- M12 connectors and IP67-rated protection
- 10/100BaseT(X), 4-pin M12 (D-coding), F/H duplex mode, and auto MDI/MDI-X connection
- Power input: 12 to 45 VDC, 18 to 30 VAC
- -40 to 75˚C operating temperature range (T model)
