Management features
| MIB support |
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON Group 1, 2, 3, 9 |
| Quality of Service (QoS) support |
Y |
Data transmission
| Maximum data transfer rate |
0.1 Gbit/s |
Other features
| Electromagnetic emissions |
FCC Part 15, CISPR (EN55022) class A |
| Mounting interface |
DIN-Rail, Wall |
| Installed ports |
5 x 10/100BaseT(X) |
Design
| Safety |
UL508, UL60950-1, CSA C22.2 No. 60950-1, EN60950-1 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Protocols
| Supported network protocols |
IGMP V1/V2/V3 device, GVRP, SNMP V1/V2c/V3, DHCP Server/Client, DHCP Option 82, BootP, TFTP, SNTP, SMTP, RARP, GMRP, LACP, RMON |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
Additionally
| Wireless technologies |
Wired |

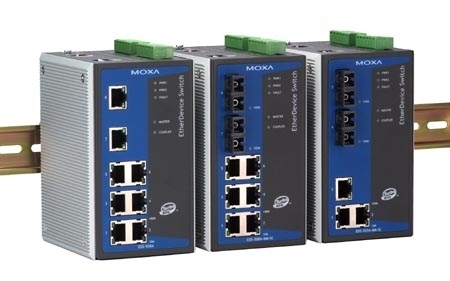

EDS-505A Industrial Managed Redundant Ethernet Switch with 5 10/100BaseT(X) ports, 0 to 60°C
EDS-508A/505A is a plug-and-play managed redundant Ethernet switch. A set of Turbo Ring DIP switches makes it easy to set up Turbo Ring (recovery time < 20 ms) to increase system reliability. In addition, EDS-508A/505A supports many advanced managed features, suchas QoS, 802.1Q VLAN, port-based VLAN, IEEE802.1X, SSL, SNMP V1/V2c/V3, IGMP Snooping, Port Trunking, and RMON for network management. The extended operating temperature range of -40 to 75°C is also available.
Advanced Industrial Networking Capability
-Plug-n-Play, Turbo Ring (recovery time < 20 ms at full load) and RSTP/STP (IEEE802.1W/D).
-IGMP Snooping and GMRP for filtering multicast traffic from industrial Ethernet.
-Port-based VLAN, IEEE802.1Q VLAN and GVRP protocol to ease network planning.
-QoS-IEEE802.1p/1Q and TOS/DiffServ to increase determinism.
-802.3ad, LACP for optimum bandwidth utilization.
-Port Trunking for optimum bandwidth utilization.
-RMON for efficient network monitoring and proactive capability.
-SNMP V1/V2c/V3 for different levels of network management security.
-IEEE802.1X and https/SSL to enhance network security.
Designed for Industrial Applications
-Bandwidth management prevents unpredictable network status.
-ABC-01 (Automatic Backup Configurator) for system configuration backup.
-Port lock for access from unauthorized MAC address.
-Port mirroring for online debugging.
-Automatic warning by exception through email, relay output.
-Digital inputs to integrate sensors and alarms with IP networks.
-Automatic recovery of connected device's IP addresses.
-Line-swap fast recovery (Patented).
-Redundant, dual DC power inputs.
-Regular (0 to 60°C) and extended (-40 to 75°C) operating temperature models available.
-IP30, rugged high-strength case.
-Long-haul transmit distance of 40 km or 80 km.
-DIN-Rail or panel mounting ability.
-Configurable by Web browser, Telnet/Serial console, Windows utility.
-Ping commands to identify network segment integrity.
Recommended Software and Accessories
-ABC-01 RS-232 RJ45-based Automatic Backup Configurator.
-EDS-SNMP OPC Server Pro.
-DR series DIN-Rail 24 VDC power supplies.
