Processor
Processor frequency |
0.2 GHz |
Other features
Operating system version |
2.6.23 |
Networking features |
Fast Ethernet |
Supported network protocols |
ARP, PPP, CHAP, PAP, IPv4, ICMP, TCP, UDP, DHCP, FTP, SNMP V1, HTTP, NTP, NFS, SMTP, SSH 1.0/2.0, SSL, Telnet, PPPoE, OpenVPN |
Power supply type |
DC |
Storage
Total storage capacity |
32 GB |
RISC-based embedded core module, RS-232/422/485, DIO, Fast Ethernet, VGA, CF, USB, Linux2.6
- Cirrus Logic EP9315 ARM9 CPU, 200 MHz;
- 128 MB RAM on-board, 32 MB flash disk;
- Graphical interface for external VGA output connection;
- 2 KV optically isolated RS-232/422/485 serial ports;
- Dual 10/100 Mbps Ethernet for network redundancy;
- 8 DI and 8 DO channels;
- Supports CompactFlash and USB 2.0 hosts;
- Ready-to-run WinCE 6.0 or Linux platform;
- Full-function development kit for quick evaluation and application development.

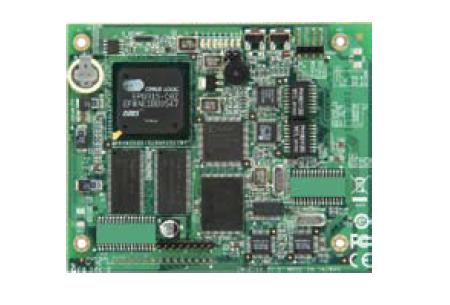

The EM-2260 embedded module features 4 RS-232/422/485 serial ports, dual Ethernet ports, an EIDE interface for designing an external storage connection, such as a CompactFlash socket, and USB port signals. The module has a compact design that is easily integrated with a variety of industrial applications, including gas stations, vending machines, and ticketing machines, and offers a powerful serial communication capability for better system integration. Programmers will find the pre-installed, ready-to-run Windows CE 6.0 platform and full-function development kit a great benefit to developing software and building reliable communication bases for industrial automation applications.
The EM-2260 embedded module uses the Cirrus Logic EP9315 ARM9, 32-bit, 200 MHz RISC CPU. This powerful computing engine supports several useful communication functions, but will not generate a lot of heat. The built-in 32 MB NOR Flash ROM and 128 MB SDRAM give you enough memory to run your application software directly on the EM-2260.
With its built-in VGA output interface, the EM-2260 is suitable for use with SCADA systems in industrial applications, such as manufacturing automation, production line process monitoring, and mining automation, that require VGA and HMI features.
The EM-2260 comes pre-installed with either the open standard Linux OS, or the more common WinCE OS. Software written for a desktop PC can be easily ported to the EM-2260 platform by using a common compiler, without needing to modify the code, and the software you develop for your own applications can be stored in the EM-2260’s flash memory
The EM-2260 Development Kit provides users with a handy tool for first time evaluation to test the functionality of the embedded core module. It has several peripherals built-in, including RS-232/422/485 ports and digital input and output, making it suitable for developing a variety of industrial applications.
