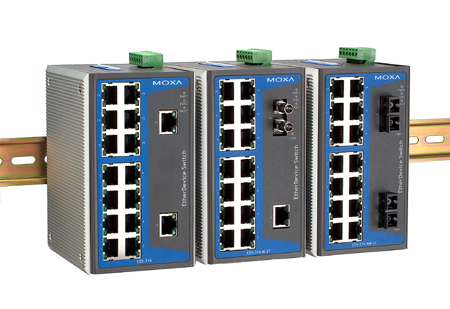

Moxa EtherDevice™ Switch EDS-316, Multi Mode, ST Connector (-40 - 75˚C) Unmanaged

EtherDevice™ Switch EDS-316, Multi Mode, ST Connector (-40 - 75˚C) The EDS-316 series is a 16-port Ethernet switches that provide an economical solution for your industrial Ethernet connection, and the built-in relay warning function alerts maintainers when power failures or port breaks occur. This switch has been designed for harsh industrial environments, such as in hazardous locations (Class 1 Div. 2/Zone 2) that comply with FCC, TÜV, UL, and CE standards. EDS-316 series includes 2 models: one with an operating temperature range of 0 to 60°C, and the other one with extended operating temperature range of -40 to 75°C. These 2 models pass through a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control.

High Performance Network Switching Technology
-10/100BaseT(X) (RJ45), 100BaseFX (SC/ST connector, Multi/Single mode)
-Broadcast storm protection
-IEEE802.3/ 802.3u/ 802.3x
-Store and Forward switching process type
-10/100M, Full/Half-Duplex, MDI/MDI-X auto-sensing
Industrial-grade Reliability
-Power failure, port break alarm by relay output
-Redundant dual DC power inputs
Rugged Design
-Operating temperature ranges from 0 to 60°C, or extended operating temperature from -40 to 75°C
-IP30, rugged high-strength metal case
-DIN-Rail or panel mounting ability
-Long-haul transmit distance of 40 km or 80 km
-Designed for hazardous location (Class 1 Div. 2/Zone 2) (pending)
Recommended Accessories
-DR Series DIN-Rail 24 VDC Power Supplies
