Operational conditions
| Operating altitude |
0 - 2000 m |
Performance
| Power over Ethernet (PoE) |
N |
| Type |
Network transmitter & receiver |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
Managed SHDSL Ethernet extenders
<b>Features and Benefits</b>
- Automatic CO/CPE negotiation reduces configuration time
- Turbo mode connection, up to 15.3 Mbps over twisted-pair copper wires
- Link Fault Pass-through (LFP) support and interoperable with Turbo Ring and Turbo Chain
- Link quality indicators for simple troubleshooting
- Easy network management by web browser, Telnet/serial console, Windows utility, ABC-01, and MXview
<b>Introduction</b>

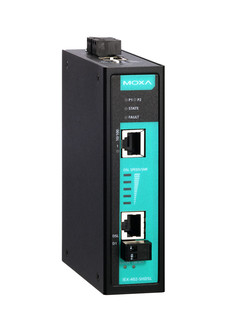

The IEX-402 series is an industrial managed Ethernet extender designed with one 10/100BaseT(X) and one DSL port. The Ethernet extender provides a point-to-point extension over twisted copper wires based on G.SHDSL.bis and VDSL2 standards. The IEX-402-SHDSL supports data rates of up to 15.3 Mbps with a long transmission distance of up to 8 km, while the IEX-402-VDSL2 provides data rates of up to 100 Mbps with transmission distance of up to 3 km.
The IEX-402 series is designed for use in harsh operating environments. The DIN-rail mount, wide operating temperature range (-40 to 75°C), and dual power input make it ideal for installation in industrial applications.
To simplify configuration, the IEX-402 series uses CO/CPE auto negotiation. By factory default, the device will automatically assign CPE status to one of each pair of IEX devices. In addition, Link Fault Pass-through (LFP) and network redundancy interoperability enhance the reliability and accessibility of communication networks. Advanced managed and monitored functionality through MXview, including a virtual panel, improve the user experience for quick trouble shooting.
