Processor
| Tjunction |
105 °C |
| FSB Parity |
N |
| Processor front side bus |
1066 MHz |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
410 M |
| Number of processors installed |
1 |
| Processor boost frequency |
2.26 GHz |
| Processor cache |
6 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
25 W |
| Processor codename |
Penryn |
| Conflict Free processor |
N |
| CPU multiplier (bus/core ratio) |
8.5 |
| Processor operating modes |
64-bit |
| Processor socket |
BGA 956 |
| Processor cores |
2 |
| Processor frequency |
2.26 GHz |
| Bus type |
FSB |
Processor special features
| Embedded options available |
Y |
| Intel Hyper-Threading Technology |
N |
| Execute Disable Bit |
Y |
| Intel Trusted Execution Technology |
Y |
| Processor package size |
22 mm |
| Processor ARK ID |
36691 |
| Intel 64 |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
Graphics
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter family |
Intel GMA |
| On-board graphics adapter |
Y |
Ports & interfaces
| Serial ports quantity |
2 |
| DVI port |
Y |
| RS‐232/422 port |
Y |
| PS/2 ports quantity |
1 |
| Line-in |
Y |
| Line-out |
Y |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Packaging content
| Display included |
N |
| Drivers included |
Y |
Performance
| Motherboard southbridge |
Intel ICH9M |
Storage
| Number of storage drives supported |
2 |
| Card reader integrated |
Y |
| Storage media |
Flash |
| Hard drive interface |
Serial ATA |
Software
| Pre-installed software |
Windows 7, Windows XP SP3, Windows XP Embedded (models with OS pre-installed available by request) |
Power
| Power supply input voltage |
19 - 36 V |
| Power supply |
48.6 W |
Memory
| Maximum internal memory |
4 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Additionally
| Chipset |
Intel GS45 Express |
| Processing die size |
107 mm² |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
Intel Core 2 Duo 2.26 GHz, 2 optically-isolated serial ports, 2 Gigabit LANs, dual displays, CompactFlash, USB, audio

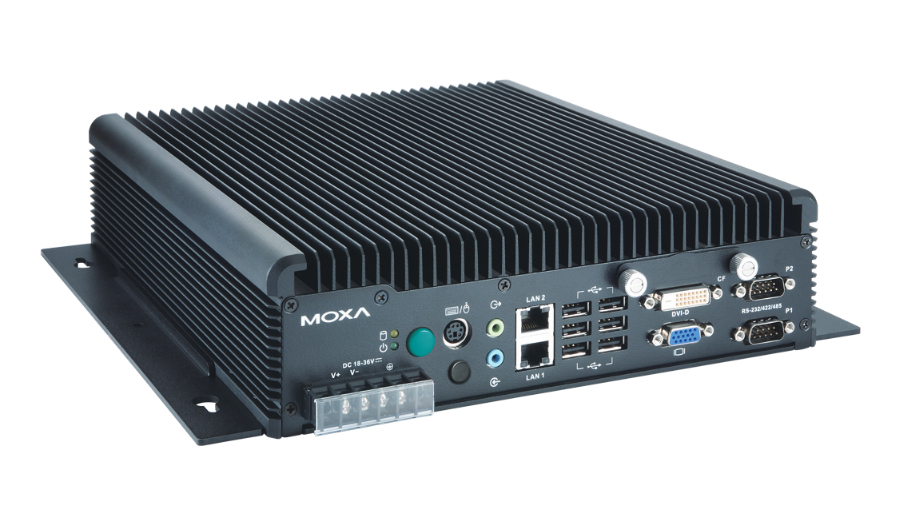

The MC-4510-C23 Master Series marine computer is based on the Intel Core 2 Duo mobile processor and comes with 2 RS-232/422/485 serial ports with optical isolation, 2 Gigabit Ethernet ports, 6 USB 2.0 hosts, and a CompactFlash socket, offering high performance and versatile peripherals for marine, railway, power, and other industrial applications.
The MC-4510-C23 Master Series marine comuter's rugged and fanless design and 1G anti-vibration and 15G anti-shock guarantee make it particularly well-suited for bridge systems in marine applications. In addition, the compact size and low power consumption features ensure an easy installation and reliable system operation, and the modular design allows easy integration with the panel.
Users can easily install Windows 7, Windows XP SP3, Windows XP Embedded, or Windows CE 6.0 to provide a flexible and friendly environment for system development and application implementation.
