Security
| IP address filtering |
Y |
| Port forwarding |
Y |
| Firewall security |
NAT |
Antenna
| Antenna connector type |
SMA |
Cellular interface
| GPRS coding schemes |
CS4, CS3, CS2, CS1 |
| Number of SIM cards |
2 |
| GPRS multislot class |
10 |
| SIM interface |
3 V |
| GSM bands supported |
1800, 1900, 900, 850 MHz |
Technical details
| Isolation |
1.5 kV |
| Data network |
GSM, GPRS |
Ethernet LAN features
| Auto MDI/MDI-X |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Networking
| Supported network protocols |
UDP/TCP, SNTP, ICMP, DDNS, DHCP/BOOTP, PPPoE, PPP, DNS Relay, HTTPS, Telnet, IPSec |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |

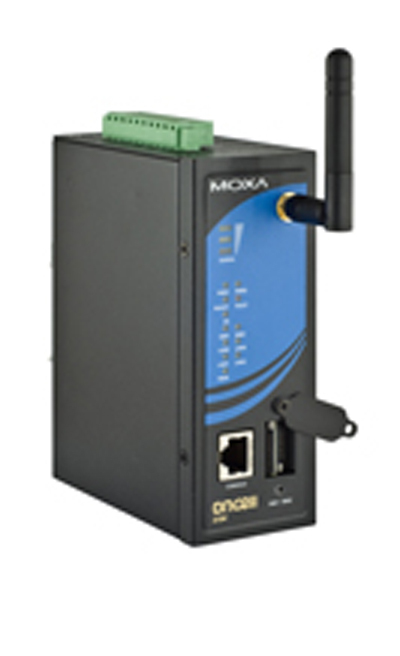

OnCell 5104, 4-port 10/100M Ethernet, GSM/GPRS, IA
<b>Industrial quad-band GSM/GPRS cellular routers</b>
The OnCell 5004/5104 are high-performance industrial grade cellular routers that allow up to 4 Ethernet-based devices to simultaneously use a single cellular data account for primary or backup network connectivity to remote sites and devices. Both products provide the functionality of a cellular router, firewall, and switch in one device, and are the industry's first standalone platform of this type. The difference between the OnCell 5004 and OnCell 5104 is that the OnCell 5104 comes with a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field, and the two digital inputs allow you to connect basic I/O devices, such as sensors, to the cellular network. The OnCell 5004 can be placed on a desktop or wall-mounted, whereas the OnCell 5104 has an IA design and can be attached to a DIN-rail. Both products use 12 to 48 VDC power inputs with a screw-on design for greater reliability, and the Ethernet ports come with 1.5 KV magnetic isolation protection to keep your system safe from unexpected electrical discharges.
<b>Features and Benefits:</b>
- Universal quad-band GSM/GPRS 850/900/1800/1900 MHz;
- Industrial primary and backup wireless WAN connectivity;
- Connect to 4 10/100BaseT(X) devices over an integrated VPN;
- Centralize private IP management with OnCell Central Manager;
- Redundant DC power inputs;
- 2 digital inputs and 1 relay output (OnCell 5104 only).
