Networking
| Dynamic DNS (DDNS) |
Y |
| GSM bands supported |
1800, 900 MHz |
| Ethernet LAN data rates |
100, 10 Mbit/s |
Technical details
| Management software |
SNMP v1/v2c/v3, Web/ Telnet/Serial Console, SSH, Remote SMS Control, Caller ID, Auto IP Report |
| Short Message Service (SMS) |
Y |
| Antenna connector type |
SMA (female) |
| Antenna type |
UMTS/HSPA |
| Number of simultaneous SIM cards |
1 |
Protocols
| Routing protocols |
IP |
| Supported network protocols |
ARP, DDNS, DHCP/BOOTP, DNS Relay, HTTP, HTTPS, ICMP, IPSec, SMTP, SNTP, SSH, SSL, TCP/IP, Telnet, UD |
Security
| Authentication method |
Local username and password |
| Firewall security |
Y |
Packaging content
| Quick installation guide |
Y |
Power
| Input current |
0.9 A |
| Input voltage |
12 - 48 V |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
GSM/GPRS/EDGE/UMTS/HSPA, 1 x RJ45, auto MDI/MDIX, RS-232

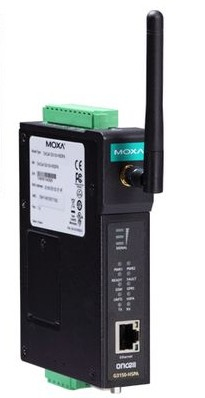

The OnCell G3110/G3150-HSPA series of high-speed industrial-grade IP gateways are intelligent and fully-featured wireless communication platforms that connect your Ethernet and serial devices over a cellular TCP/IP network. The OnCell G3110/G3150-HSPA series offer connectivity to all five HSPA/UMTS frequency bands and quad GSM/GPRS/EDGE frequency bands used in Europe and the United States, allowing the most flexible global deployment on the best available network. The OnCell G3110/G3150-HSPA come with private IP management software and support VPN for handling the IP address issue in cellular network structures. The OnCell G3110/G3150-HSPA also have a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field. Two digital inputs also allow you to connect basic I/O devices, and the OnCell G3110/G3150-HSPA comes with redundant power inputs to assure non-stop operation.
