Security
| IP address filtering |
Y |
| Port forwarding |
Y |
| Firewall security |
NAT |
Antenna
| Antenna connector type |
SMA |
| Antenna gain level (max) |
1.5 dBi |
Cellular interface
| Number of SIM cards |
1 |
| SIM interface |
3 V |
| UMTS bands supported |
2100 MHz |
Serial interface
| Electrostatic Discharge (ESD) protection |
15 kV |
| Surge protection |
2 kV |
| Baud rate |
0.05 Kbit/s |
| Serial ports quantity |
1 |
Technical details
| Isolation |
1.5 kV |
| Data network |
HSDPA, 3G |
Ethernet LAN features
| Auto MDI/MDI-X |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
| Management protocols |
SNMP MIB-II, SNMP Private MIB, SNMPv1/v2c/v3, DDNS, IP Report, Web/Telnet/Serial-Console/SSH |
Networking
| Supported network protocols |
ICMP, TCP/IP, UDP, DHCP, Telnet, DNS, HTTP, SMTP, HTTPS, SNTP, ARP, SSL, IPSec |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

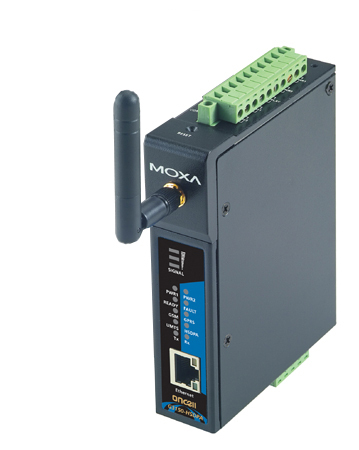

OnCell G3150-HSDPA-JPS, 1 x RS-232/422/485, UMTS/HSDPA, IP Gateway, Japan Softbank
<b>Industrial five-band GSM/GPRS/EDGE/UMTS/HSDPA IP gateways</b>
The OnCell G3100-HSDPA series of high-speed industrial-grade IP gateways are intelligent and fully-featured wireless communication platforms that connect your Ethernet and serial devices over a cellular TCP/IP network. The OnCell G3100-HSDPA series offers connectivity to all tri HSDPA/UMTS frequency bands and quad GSM/GPRS/EDGE frequency bands used in Europe and the United States, allowing seamless global roaming on the best available network. The OnCell
G3100-HSDPA comes with private IP management software and supports VPN for handling the IP address issue in cellular network structures. The OnCell G3100-HSDPA also comes with a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field. Two digital inputs also allow you to connect basic I/O devices, and the OnCell G3100-HSDPA comes with redundant power inputs to assure non-stop operation.
<b>Features and Benefits:</b>
- Tri-band UMTS/HSDPA 850/1900/2100 MHz;
- Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz;
- Connect to Ethernet and serial devices over an integrated VPN;
- Centralize private IP management software with OnCell Central Manager;
- Redundant DC power inputs;
- 2 digital inputs and 1 relay output.
