Other features
| Expansion slots |
- SD socket x 1;\n- USB 2.0 host x 1;\n- RS-232 x 1, RJ45;\n- serial RS-232/422/485 x 4;\n |
| Networking features |
10/100 Mbps x 2, RJ45 |
Memory
| Internal memory |
0.0625 GB |
Processor
| Processor frequency |
0.192 GHz |

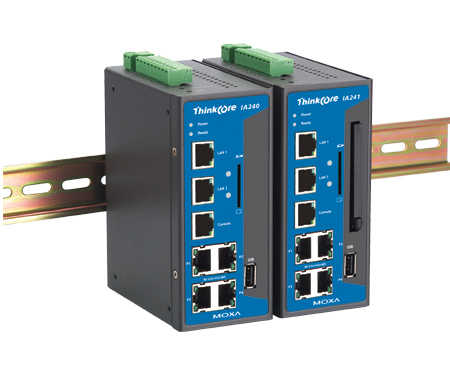

ThinkCore IA240-LX - RISC-based Industrial Ready-to-Run Embedded Computer with 4 Serial Ports, 4 DI Channels, 4 DO Channels, Dual Ethernet, SD, Linux OS
ThinkCore IA240 embedded computers for industrial automation feature 4 RS-232/422/485 serial ports, dual Ethernet ports, 4 digital input channels, 4 digital output channels, and a PCMCIA cardbus and SD socket in a compact, IP30 protected, industrial-strength rugged chassis. The DIN-Rail vertical form factor makes the IA240 a cost-effective solution for installation in small cabinets. This space-saving solution also facilitates easy wiring, and is the best choice of front-end embedded controller for industrial applications.
In addition to the standard model, the ThinkCore IA240 also comes in wide temperature models. The IA240-T have an operating temperature range of -40 to 75°C, making them appropriate for harsh industrial automation environments. The industrial mechanism of the ThinkCore IA240 design provides robust, reliable computing. Due to the RISC-based architecture, the ThinkCore IA240 will not generate too much heat while being used. The high communication performance and fanless design make the IA240 ideal for industrial automation environments.
Features:
- Reliable and industrial-grade design meets IP30 requirements;
- Patented Software Encryption Lock protects intelletual property;
- -40 to 75°C wide temperature models available;
- 4 software-selectable RS-232/422/485 serial ports;
- 4 digital input channels and 4 digital output channels;
- Dual 10/100 Mbps Ethernet for redundant networking;
- PCMCIA, wireless LAN expansion (supports 802.11b/g);
- SD socket for storage expansion;
- Ready-to-run Linux communication platform;
- DIN-Rail installation to save cabinet space; wall-mount installation is also possible
