Other features
Expansion slots |
- SD socket x 1;\n- USB 2.0 host x 1;\n- RS-232 x 1, RJ45;\n- serial RS-232/422/485 x 4; |
Supported network protocols |
TCP, UDP, IPv4, SNMP V1/V2c, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, SMTP, Telnet, FTP, PPP, PPPoE |
Networking features |
10/100 Mbps x 2, RJ45 |
Processor
Processor frequency |
0.192 GHz |

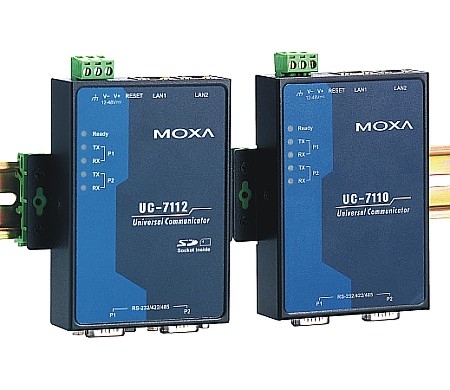

UC-7110-T-LX - Mini RISC-based Ready-to-Run Embedded Computer with 2 Serial Ports, Dual Ethernet, μClinux OS, Wide Temperature
UC-7110 Mini RISC-based Communication Platforms are ideal for your embedded applications. UC-7110 comes with two RS-232/422/485 serial ports and dual 10/100 Mbps Ethernet LAN ports to provide users with a versatile communication platform.
UC-7110 uses the ARM9 RISC CPU. Unlike the X86 CPU, which uses a CISC design, the ARM9's RISC design architecture and modern semiconductor technology provide UC-7110 with a powerful computing engine and communication functions, but without generating too much heat. The built-in 8 MB NOR Flash ROM and 16 MB SDRAM give you enough storage capacity, and an additional SD socket provides the user with flexible storage expansion to run applications. The dual LAN ports built into the ARM9 make UC-7110 an ideal communication platform for some of the more simple data acquisition and protocol conversion applications, and the two RS-232/422/485 serial ports allow you to connect a variety of different types of serial devices.
The pre-installed µClinux operating system provides an open software operating system for software program development. This means that software written for desktop PCs is easily ported to UC-7110 Plus by using a GNU cross complier, so that you will not need to spend time modifying existing software code. The Operating System, device drivers, and your own software can all be stored on the UC-7110 Flash memory.
UC-7110 also provides wide temperature model with the operating temperature range from -40 to 75°C for any harsh industrial environments.
Applications:
- Protocol Conversion
- Remote Access
- Event Handling
- Port Buffering
Target Markets:
- Industrial Automation
- Building Automation
- Transportation Automation
- SCADA Systems
- Medical Automation
- Energy Automation
