Other features
| Keyboard type |
5 buttons keypad |
| Expansion slots |
- 1 x 16-bit PCMCIA 2.1;\n- USB 2.0 x 2;\n- RS-232 x 1, RJ45;\n- Serial RS-232/422/485 x 8, RJ45 |
| Supported network protocols |
TCP, UDP, IPv4, SNMP V1/V3, ICMP, IGMP, ARP, HTTP, CHAP, PAP, SSH 1.0/ 2.0, SSL, DHCP, NTP, NFS, SMTP, Telnet, FTP, PPP, PPPoE |
| Networking features |
10/100 Mbps x 2, RJ45 |
Processor
| Processor frequency |
0.266 GHz |

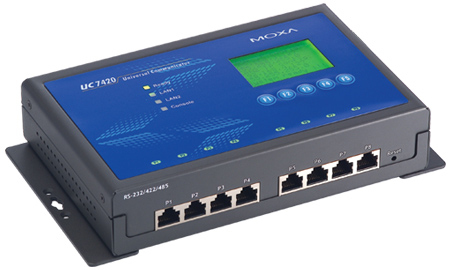

UC-7420-LX - RISC-based Ready-to-Run Embedded Computer with IXP-422, 8 Serial Ports, Dual LANs, USB, PCMCIA, CompactFlash, Linux 2.4
The UC-7420 referred to collectively as UC-7400, are RISC-based ready-to-run embedded computers for your embedded applications. The UC-7400 embedded computers feature eight RS-232/422/485 serial ports, dual 10/100 Mbps Ethernet, a PCMCIA interface for wireless LAN communication, CompactFlash, and USB ports for mass storage disk expansion, making the UC-7400 ideal for your embedded applications.
The pre-installed Linux and WinCE operating systems provide open, standard software environments for your software program development. This means that software written for a desktop PC can be easily ported to the UC-7400 platform by using an open, common development tool, without needing to modify the software code. The software you develop for your own applications can be stored in the UC-7400's Flash memory. The UC-7420 can be used to build a control system with a distributed architecture, based on embedded technologies.
Robust Design for Industrial Applications
- Wall mount design for easy installation. The compact size means that the UC-7400 occupies less space, and the wall mount design gives you the freedom to place it anywhere.
- No fan, No hard disk operation. Since the UC-7400 uses an onboard flash for storage and CF for storage expansion, system failures caused by a low MTBF hard drive are avoided. And with the RISC IXP-422/425 CPU, which generates almost no heat, the UC-7400 does not need a fan to cool down the system, providing you with a more reliable system.
- Field power adaptable. The wide range 12 to 48 VDC power input design makes the UC-7400 ready for use with field 24 VDC or 48 VDC power. An optional AC power adaptor is also available for 110 to 240 VAC power inputs.
Applications:
- Protocol Conversion
- Remote Access
- Event Handling
- Secure Device Server
Target Markets:
- Industrial Automation
- Building Automation
- Transportation Automation
- SCADA Systems
- Military
