Processor special features
| Processor package size |
22 mm |
| Processor ARK ID |
41176 |
| Processor code |
SLGPR |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Intel 64 |
N |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Supported protocols |
DHCP, DNS, FTP, HTTP, SNTP, NTP, Telnet, SMTP, SNMPv2, TCP, UDP, IPv4, ICMP, IGMP, IPsec, TAPI, ICS, PPP, CHAP, EAP, PPPoE, PPTP, NetBIOS |
| Cabling technology |
10/100/1000Base-T(X) |
Processor
| Processor codename |
Silverthorne |
| CPU multiplier (bus/core ratio) |
11 |
| Processor operating modes |
32-bit |
| Processor socket |
BGA 437 |
| Stepping |
C0 |
| Processor cores |
1 |
| Processor frequency |
1.1 GHz |
| ECC supported by processor |
N |
| Bus type |
FSB |
| Processor front side bus |
400 MHz |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
47 M |
| Number of processors installed |
1 |
| Processor cache |
0.512 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
2.2 W |
| Conflict Free processor |
N |
| Tjunction |
90 °C |
| FSB Parity |
N |
Ports & interfaces
| RS‐232/422 port |
Y |
| Line-in |
Y |
| Line-out |
Y |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
2 |
| DVI port |
N |
Memory
| Memory slots |
1x SO-DIMM |
| Maximum internal memory |
2 GB |
| Internal memory |
1 GB |
| Internal memory type |
DDR2-SDRAM |
| Memory clock speed |
400 MHz |
| Memory layout (slots x size) |
1 x 2 GB |
Storage
| Compatible memory cards |
SD |
| Total storage capacity |
2 GB |
| Card reader integrated |
Y |
| Storage media |
Flash |
Power
| Power supply input voltage |
9 - 36 V |
| Power supply |
27 W |
Graphics
| On-board graphics adapter family |
Intel GMA |
| On-board graphics adapter |
Y |
| Discrete graphics adapter model |
Not available |
Packaging content
| Display included |
N |
| Drivers included |
Y |
Software
| Pre-installed software |
indows Embedded Standard 2009, |
| Operating system architecture |
32-bit |
Additionally
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Processing die size |
26 mm² |
| InTru™ 3D Technology |
N |
| Chipset |
Intel US15WPT |

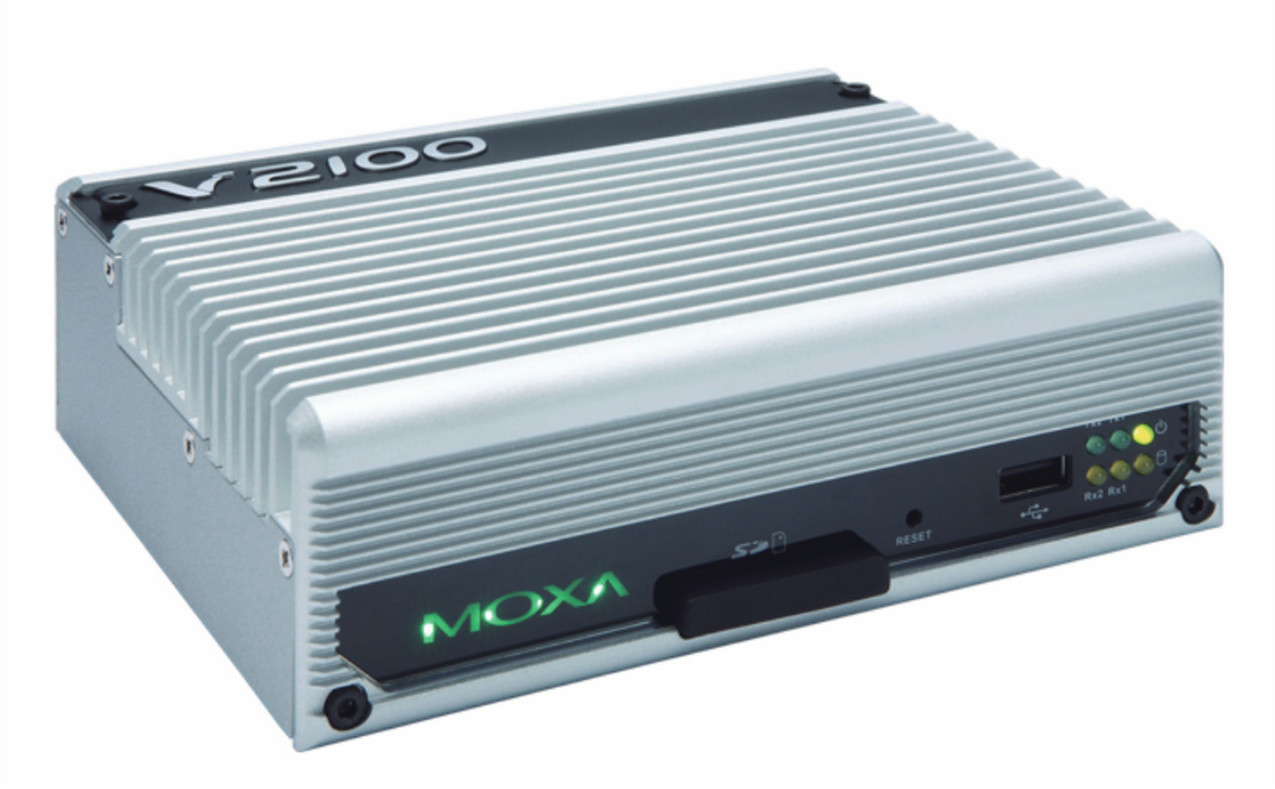

x86 ready-to-run embedded computer with Intel Atom Z510PT, VGA, LVDS, Audio, 2 LANs, 2 serial ports, 3 DIs, 3 DOs, 4 USB 2.0 ports, SD, Windows Embedded Standard 2009, -40 to 85°C operating temperature
The V2101 embedded computers are based on the Intel Atom Z510PT x86 processor, and feature 2 serial ports, dual Gigabit LAN ports, 4 USB 2.0 hosts, and SD socket. The V2100 Series offers both VGA and LVDS outputs, making it particularly well-suited for industrial applications, such as SCADA and factory automation.
The V2101 computers’ 2 serial ports make them ideal for connecting a wide range of serial devices, and the dual 10/100/1000 Mbps Ethernet ports offer a reliable solution for network redundancy, promising continuous operation for data communication and management. As an added convenience, the V2101 computers have 3 DIs and 3 DOs for connecting digital input/output devices. In addition, the SD and USB sockets provide the V2101 computers with the reliability needed for industrial applications that require data buffering and storage expansion.
Pre-installed with Linux, Windows CE 6.0, or Windows Embedded Standard 2009, the V2101 Series provides programmers with a friendly environment for developing sophisticated, bug-free application software at a lower cost.
All V2101 models support a wide operating temperature range of -40 to 85°C for harsh industrial environments.
