Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Supported protocols |
DHCP, DNS, FTP, HTTP, SNTP, NTP, Telnet, SMTP, SNMPv2, TCP, UDP, IPv4, ICMP, IGMP, IPsec, TAPI, ICS, PPP, CHAP, EAP, PPPoE, PPTP, NetBIOS |
Packaging content
| Display included |
N |
| Drivers included |
Y |
Processor
| Number of processors installed |
1 |
| Processor cache |
0.512 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
2.5 W |
| Conflict Free processor |
N |
| Tjunction |
90 °C |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
12 |
| Processor operating modes |
32-bit |
| Processor socket |
Socket F (1207) |
| Bus type |
FSB |
| Processor front side bus |
533 MHz |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
47 M |
| Stepping |
C0 |
| Processor cores |
1 |
| Processor frequency |
1.6 GHz |
Performance
| Motherboard southbridge |
Intel ICH7M |
| Watch Dog function |
Y |
Storage
| Number of storage drives supported |
1 |
| Compatible memory cards |
CF, CF Type II |
| Total storage capacity |
2 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA II |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Processor package size |
22 mm |
| Processor ARK ID |
36331 |
| Processor code |
SLB73 |
| Intel 64 |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel Demand Based Switching |
N |
| Supported instruction sets |
SSE3, SSE2 |
| Enhanced Intel SpeedStep Technology |
Y |
Software
| Pre-installed software |
Windows Embedded Standard 2009 |
| Operating system architecture |
32-bit |
Ports & interfaces
| Serial ports quantity |
4 |
| RS‐232/422 port |
Y |
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
Y |
| PS/2 ports quantity |
1 |
| Line-in |
Y |
| Line-out |
Y |
Memory
| Memory clock speed |
533 MHz |
| Memory layout (slots x size) |
1 x 2 GB |
| Internal memory type |
DDR2-SDRAM |
| Memory slots |
1x SO-DIMM |
| Maximum internal memory |
2 GB |
| Internal memory |
1 GB |
Graphics
| Discrete graphics adapter model |
Not available |
Power
| Power supply |
26 W |
| Power supply input voltage |
9 - 36 V |
Additionally
| Chipset |
Intel 945GSE Express |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Processing die size |
26 mm² |
| Ethernet LAN connection |
Y |

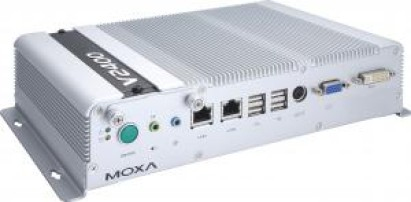

x86 ready-to-run embedded computer with Intel Atom N270, VGA, DVI, Audio, 2 LANs, 4 serial ports, 4 DIs, 4 DOs, 6 USB 2.0 ports, CF, Windows Embedded Standard 2009, -10 to 60°C operating temperature
The V2401/2402 Series embedded computers are based on the Intel Atom N270 x86 processor, and feature 4 RS-232/422/485 serial ports, 8 RS-232 serial ports, dual Gigabit LAN ports, 6 USB 2.0 hosts, and a CompactFlash socket. The V2401 computer provides VGA, DVI, and LVDS outputs, and the V2402 computer provides both VGA and DVI outputs, making them particularly well-suited for industrial applications such as SCADA and factory automation.
The V2401 and V2402 come with 4 RS-232/422/485 serial ports, and the V2401 has an additional 8 RS-232 ports, making them ideal for connecting a wide range of serial devices, and the dual 10/100/1000 Mbps Ethernet ports offer a reliable solution for network redundancy, promising continuous operation for data communication and management. As an added convenience, the V2401/2402 computers have 4 DIs, and 4 DOs for connecting digital input/output devices. In addition, the CompactFlash and USB sockets provide the V2401/2402 computers with the reliability needed for industrial applications that require data buffering and storage expansion.
Pre-installed with Linux, Windows CE 6.0, or Windows Embedded Standard 2009, the V2401/2402 Series provides programmers with a friendly environment for developing sophisticated, bug-free application software at a low cost.
In addition, the V2402 series also offers -40 to 70°C wide temperature models for harsh environments.
