Processor
FSB Parity |
N |
CPU multiplier (bus/core ratio) |
12 |
Processor operating modes |
32-bit |
Processor socket |
Socket F (1207) |
Stepping |
C0 |
Processor cores |
1 |
Processor frequency |
1.6 GHz |
Bus type |
FSB |
Processor front side bus |
533 MHz |
Processor cache type |
L2 |
Number of Processing Die Transistors |
47 M |
Number of processors installed |
1 |
Processor cache |
0.512 MB |
Processor lithography |
45 nm |
Thermal Design Power (TDP) |
2.5 W |
Conflict Free processor |
N |
Tjunction |
90 °C |
Processor special features
Embedded options available |
Y |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel Hyper-Threading Technology |
Y |
Intel® Turbo Boost Technology |
N |
Intel Enhanced Halt State |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
N |
Supported instruction sets |
SSE3, SSE2 |
Execute Disable Bit |
Y |
Thermal Monitoring Technologies |
Y |
Intel Trusted Execution Technology |
N |
Processor package size |
22 mm |
Processor ARK ID |
36331 |
Processor code |
SLB73 |
Intel 64 |
N |
Graphics
Discrete graphics adapter model |
Not available |
Ports & interfaces
RS‐232/422 port |
Y |
PS/2 ports quantity |
1 |
Line-in |
Y |
Line-out |
Y |
VGA (D-Sub) ports quantity |
1 |
DC-in jack |
Y |
DVI port |
Y |
Serial ports quantity |
4 |
Memory
Memory slots |
1x SO-DIMM |
Maximum internal memory |
2 GB |
Internal memory |
1 GB |
Internal memory type |
DDR2-SDRAM |
Memory clock speed |
533 MHz |
Memory layout (slots x size) |
1 x 1 GB |
Power
Power supply input voltage |
12 - 48 V |
Power supply |
26 W |
Storage
Total storage capacity |
2 GB |
Card reader integrated |
Y |
Hot-swap drive bays |
Y |
Hard drive interface |
Serial ATA II |
Number of storage drives supported |
2 |
Performance
Watch Dog function |
Y |
Motherboard southbridge |
Intel ICH7M |
Networking
Supported protocols |
DHCP, DNS, FTP, HTTP, SNTP, NTP, Telnet, SMTP, SNMPv2, TCP, UDP, IPv4, ICMP, IGMP, IPsec, TAPI, ICS, PPP, CHAP, EAP, PPPoE, PPTP, NetBIOS |
Cabling technology |
10/100/1000Base-T(X) |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Packaging content
Display included |
N |
Drivers included |
Y |
Software
Pre-installed software |
Windows Embedded Standard 2009 |
Operating system architecture |
32-bit |
Additionally
Chipset |
Intel 945GSE Express |
Ethernet LAN connection |
Y |
Processing die size |
26 mm² |

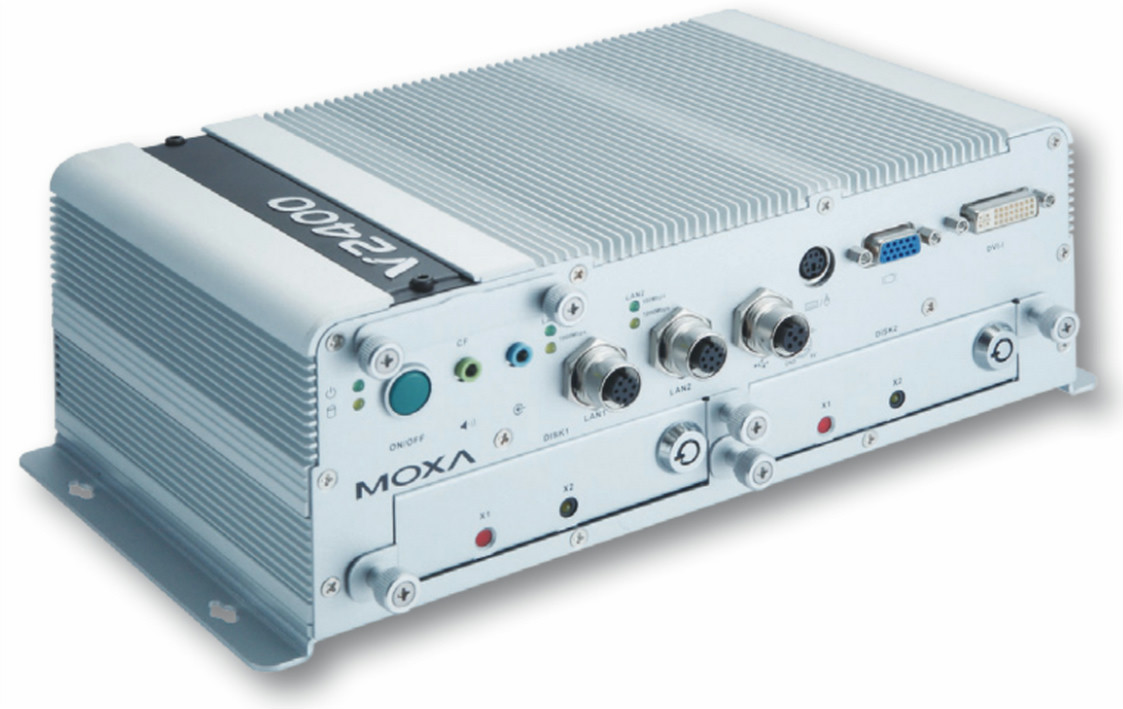

x86 ready-to-run embedded computer with Intel Atom N270 CPU, VGA, DVI-I, audio, 2 Ethernet LAN ports, 4 serial ports, 6 DIs, 2 DOs, 3 USB ports, 1 CompactFlash slot, 2 hot-swappable storage trays, Windows Embedded Standard 2009, -40 to 70°C operating temperature
The V2416 Series embedded computers are based on the Intel Atom N270 x86 processor and feature 4 RS-232/422/485 serial ports, dual LAN ports, and 3 USB 2.0 hosts. In addition, V2416 computers provide VGA and DVI-I outputs and are compliant with a portion of EN 50155 specifications, covering operating temperature, power input voltage, power surges, ESD, and vibration, making them particularly well-suited for railway and industrial applications.
The CompactFlash socket, SATA connectors, and USB sockets provide the V2416 computers with further reliability, perfect for industrial applications that require data buffering and storage expansion. Most importantly, V2416 computers come with key enhancements for mass storage media, such as two hot-swappable SATA drive trays for convenient and fast storage maintenance, user-programmable LEDs, and an API that simplifies customizing mass storage monitoring and management. Lastly, Moxa's MDM API is also included, giving users a convenient gateway-client model that eases the distributed automation and control of multiple devices by a single host device.
V2416 series computers come pre-installed with a choice of Linux, Windows Embedded Standard 2009, or Windows Embedded Standard 7, giving our customers their choice of software environments for the development of platform applications.
