Storage
| Storage media |
Flash |
| Hard drive interface |
Serial ATA II |
| Number of storage drives supported |
1 |
| Compatible memory cards |
CF |
| Total storage capacity |
2 GB |
| Card reader integrated |
Y |
Memory
| Internal memory |
1 GB |
| Internal memory type |
DDR2-SDRAM |
| Memory layout (slots x size) |
1 x 2 GB |
| Memory slots |
1x SO-DIMM |
| Maximum internal memory |
2 GB |
Processor
| Processor frequency |
1.6 GHz |
| Bus type |
FSB |
| Number of processors installed |
1 |
| Processor cache |
0.512 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
2.5 W |
| Conflict Free processor |
N |
| Tjunction |
90 °C |
| FSB Parity |
N |
| Processor front side bus |
533 MHz |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
47 M |
| CPU multiplier (bus/core ratio) |
12 |
| Processor operating modes |
32-bit |
| Processor socket |
Socket F (1207) |
| Stepping |
C0 |
| Processor cores |
1 |
Networking
| Wi-Fi |
N |
| Supported protocols |
DHCP, DNS, FTP, HTTP, SNTP, NTP, Telnet, \nSMTP, SNMPv2, TCP, UDP, IPv4, ICMP, IGMP, IPsec, TAPI, ICS, PPP, \nCHAP, EAP, PPPoE, PPTP, NetBIOS |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Processor special features
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Supported instruction sets |
SSE3, SSE2 |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Processor package size |
22 mm |
| Processor ARK ID |
36331 |
| Processor code |
SLB73 |
| Intel 64 |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
Y |
| Serial ports quantity |
4 |
| RS‐232/422 port |
Y |
| PS/2 ports quantity |
1 |
| Line-in |
Y |
| Line-out |
Y |
| Microphone in |
N |
Performance
| Motherboard southbridge |
Intel ICH7M |
Graphics
| On-board graphics adapter base frequency |
250 MHz |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Processing die size |
26 mm² |
| Chipset |
Intel 945GSE Express |
Intel Atom N270, 1.6 GHz, DDR2 SO-DIMM, 6x USB 2.0, 154 x 275 x 92mm

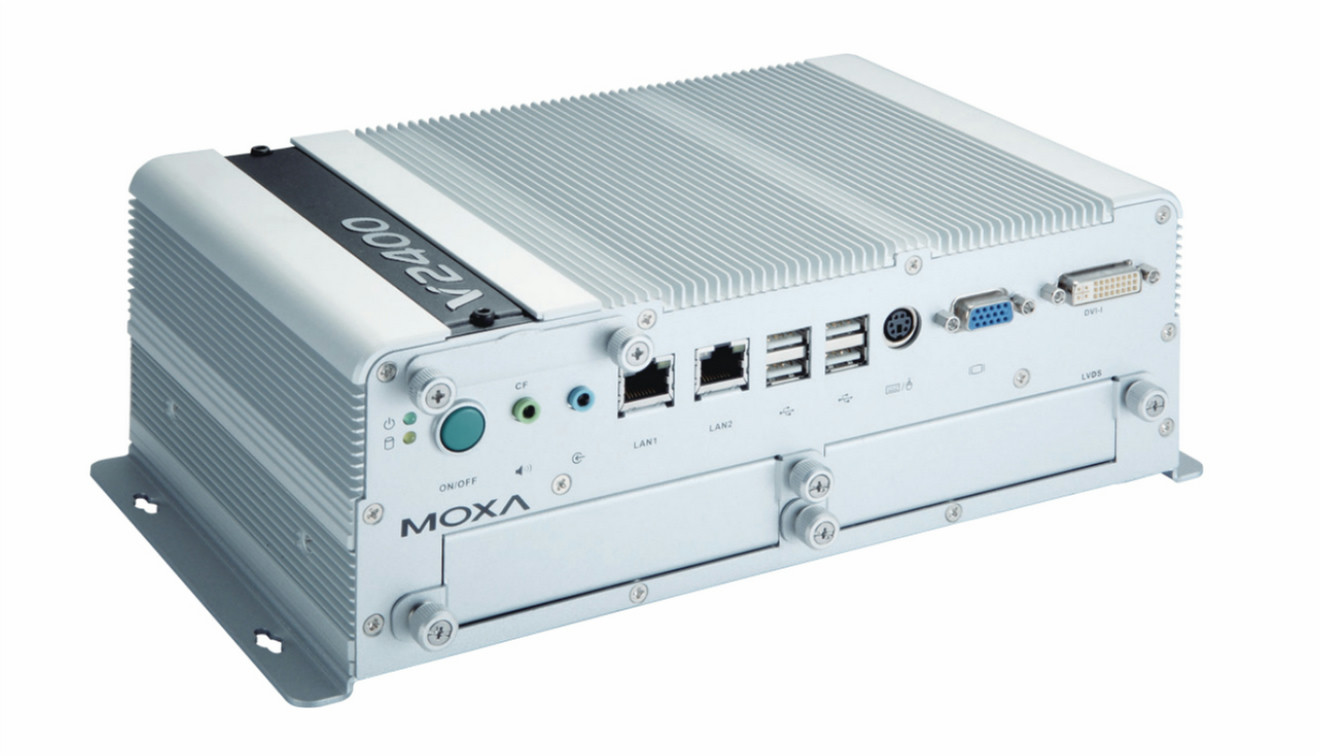

The V2422 Series embedded computers are based on the Intel Atom
N270 x86 processor, and feature 4 RS-232/422/485 serial ports,
dual Gigabit LAN ports, and 6 USB 2.0 hosts. In addition, the V2422
computers provide VGA and DVI-I outputs, making them particularly
well-suited for railway and industrial applications.
The dual 10/100/1000 Mbps Ethernet ports offer a reliable solution
for network redundancy, promising continuous operation for data
communication and management. As an added convenience, the
V2422 computers have 4 DIs and 4 DOs for connecting digital input/
output devices. In addition, the CompactFlash socket, SATA connector,
and USB sockets provide the V2422 computers with the reliability
needed for industrial applications that require data buffering and
storage expansion. Moreover, the V2422 computers come with 2
peripheral expansion slots for inserting different communication
modules, such as a 2-port CAN module, an HSDPA, GPS, WLAN
module, an 8+8 port digital input/output module, a 2-port serial
module, a mini PCI expansion module, and a PCI Express module,
providing greater flexibility for setting up different industrial
applications at field sites.
Pre-installed with Linux or Windows Embedded Standard 2009, the
V2422 Series provides programmers with a friendly environment for
developing sophisticated, bug-free application software at a low cost
