Video
| Maximum frame rate |
30 fps |
| Maximum video resolution |
720 x 576 pixels |
| PAL resolutions |
176 x 144, 352 x 288, 640 x 480, 704 x 576, 720 x 576 pixels |
| NTSC resolutions |
176 x 112, 352 x 240, 640 x 480, 704 x 480, 720 x 480 pixels |
| MPEG-4 frame rate |
30 fps |
Ports & interfaces
| BNC input ports |
1 |
| RS-485 ports |
1 |
| Fiber ports quantity |
1 |
| DC-in jack |
Y |
| Line-out |
Y |
| Line-in |
Y |
| RS-422 ports |
1 |
| I/O terminal ports |
1 |
Technical details
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Quick installation guide |
Y |
| Frame rate |
30 fps |
| Safety |
Y |
| Security features |
Password, Filtering |
| Resolution |
720 x 576 pixels |
Security
| IP address filtering |
Y |
| Video motion detection |
Y |
Networking
| Quality of Service (QoS) support |
Y |
| Supported network protocols |
TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS, Modbus/TCP |
System requirements
| Minimum RAM |
512 MB |
| Minimum processor |
Pentium 4, 2.4 GHz or above |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| RS-232 port |
1 |
| Password protection |
User |
| Filtering |
By IP address |
Multiple stream, 1-channel MJPEG/MPEG4 industrial video encoders
- 3 simultaneous video streams for MJPEG and MPEG4
- Video stream up to 30/25 frames/sec at full D1 (NTSC:720 x 480; PAL:720x576) resolution
- Video latency under 200 ms
- 2 Ethernet ports for cascade and Ethernet port redundancy
- Local storage capability with SD card slot
- Industrial design with -40 to 75°C operating temperature
- Free VPort SDK PLUS supported

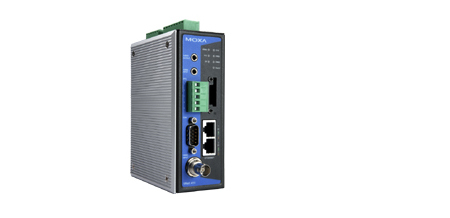

The VPort 451 is a 1-channel industrial video encoder with MJPEG and MPEG4 video compression that provides up to 3 video streams (2 MPEG4, 1 MJPEG) simultaneously. Video streams can be used for surveillance or recorded for playback analysis. In addition, a video latency under 200 milliseconds makes the VPort 451 the optimal solution for mission-critical video applications demanding real-time video delivery. In addition, the industrial rugged design, which includes a -40 to 75°C operating temperature, built-in fiber Ethernet ports, IP30 protection, and industrial certifications, make the VPort 451 superbly suitable for harsh environments.
