Networking
| Supported protocols |
TCP, UDP, IPv4, SNMP V1, ICMP, IGMP, ARP, \nHTTP, CHAP, PAP, SSH 1.0/ 2.0, SSL, DHCP, NTP, NFS, SMTP, \nTelnet, FTP, PPP, PPPoE |
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Ports & interfaces
| DVI port |
N |
| Microphone in |
N |
Graphics
| Discrete graphics adapter model |
Not available |
Storage
| Compatible memory cards |
SD |
| Total storage capacity |
0.016 GB |
| Card reader integrated |
Y |
| Storage media |
Flash |
Power
| Power supply input voltage |
12 - 48 V |
Processor
| Processor frequency |
0.192 GHz |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
MOXA ART ARM9, 32-bit, 192 MHz, 32 RAM, 16 MB Flash, 77 x 111 x 26 mm, 195 g, -10 to 60°C

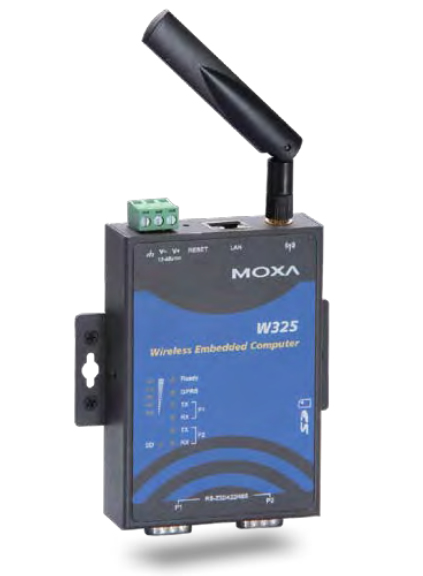

The 325 is an embedded Linux computer that features 2 software selectable RS-232/422/485 ports, 1 Ethernet port, and quad-band GSM/GPRS 900/1800/850/1900 MHz for cellular communication. In addition, the W325 comes with an SD socket for external storage expansion. The W325’s Linux OS runs on the MOXA ART 32-bit ARM9 processor, which provides a powerful and reliable platform for harsh, industrial environments. You will find these computers ideal for a variety of machine-to-machine applications, including data acquisition, protocol conversion, and remote device control and monitoring.
