Cellular interface
| GPRS multislot class |
12 |
| EDGE multislot class |
12 |
| GSM bands supported |
1800, 1900, 900, 850 MHz |
Technical details
| Isolation |
1.5 kV |
| Data network |
GSM, GPRS, EDGE |
Ethernet LAN features
| Ethernet LAN data rates |
10, 100 Mbit/s |
Certificates
| Safety |
EN 60950-1, CSA C22.2 No. 60950-1-03 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
RISC-based wireless embedded computer with GSM/GPRS/EDGE, 4- DI, 4- DO, 2- Serial ports, Ethernet, SD, Linux 2.6 OS, -10-60°C
- Cirrus Logic EP9302 32-bit ARM9 processor
- On-board 32 MB RAM
- Built-in 16 MB Flash
- Built-in GSM/GPRS/EDGE cellular communication
- GSM 850/900/1800/1900 MHz supported
- GPRS/EDGE Class 12 supported
- SMS tunnel mode provided
- 4 DIs, 4 DOs
- Two software selectable RS-232/422/485 serial ports
- 50 bps to 921.6 Kbps, non-standard baudrates supported
- 10/100M Ethernet for network redundancy
- SD socket for storage expansion
- WinCE 6.0 or Linux 2.6 platform
- Din-Rail and Wall mount installation
- Robust, fanless design
- 40 to 70°C wide operatiing temperature models available
<b>Overview</b>

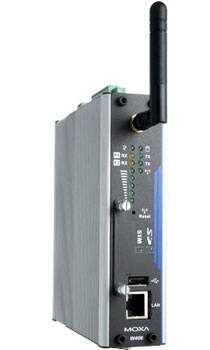

The W406 is an embedded Linux or WinCE computer that features 2 software selectable RS-232/422/485 ports, 1 Ethernet port, and quad-band GSM/GPRS/EDGE 900/1800/850/1900 MHz for cellular communication. It also comes with an SD socket, USB host, and 4 digital input and 4 digital output channels, making it the ideal computer for a variety of industrial applications such as data acquisition, data processing, protocol conversion, and remote device control and monitoring via wireless communication. The W406 comes pre-installed with either Linux or WinCE 6.0, and offers a reliable and powerful computing platform for industrial environments. Programmers will find that the W406 provides a convenient programming environment for producing bug-free industrial applications at a lower cost.
