Packaging content
| Display included |
N |
| Handheld remote control |
N |
Ports & interfaces
| DVI port |
Y |
| Serial ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DC-in jack |
Y |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Processor package size |
22 mm |
| Processor ARK ID |
36331 |
| Processor code |
SLB73 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
N |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2 |
Graphics
| On-board graphics adapter |
Y |
| Discrete graphics adapter model |
Intel GMA 950 |
Processor
| Processor cache |
0.512 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
2.5 W |
| Processor cache type |
L2 |
| Conflict Free processor |
N |
| Tjunction |
90 °C |
| FSB Parity |
N |
| Processor front side bus |
533 MHz |
| Number of Processing Die Transistors |
47 M |
| CPU multiplier (bus/core ratio) |
12 |
| Processor operating modes |
32-bit |
| Stepping |
C0 |
| Processor cores |
1 |
| Processor frequency |
1.6 GHz |
| ECC supported by processor |
N |
| Bus type |
FSB |
Other features
| Floppy drive installed |
N |
| Graphics adapter family |
Intel |
| TV tuner integrated |
N |
| Built-in camera |
N |
| Compliance industry standards |
IEEE 802.11b,IEEE 802.11g |
| Networking features |
Fast Ethernet |
| Power supply type |
DC |
Networking
| Ethernet LAN data rates |
100 Mbit/s |
| Wi-Fi |
Y |
Memory
| Memory layout (slots x size) |
1 x 1 GB |
| Maximum internal memory |
1 GB |
| Internal memory type |
DDR2-SDRAM |
| Internal memory |
1 GB |
Storage
| Total storage capacity |
160 GB |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA II |
Additionally
| InTru™ 3D Technology |
N |
| Processing die size |
26 mm² |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

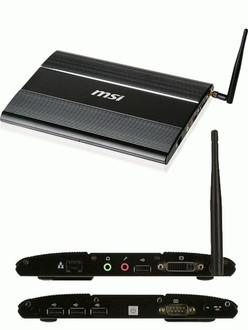

009A25-020R, Intel Atom N270 1.6GHz, 1GB DDR2, 160GB SATA II, DVI-I, USB, 802.11 b/g, OS, 1.08kg
- ntel Atom Fanless Solution for High Performance with GbE Lan and WLAN;
- ‧Low Power Solution with Fanless Design;
- ‧Optional Hardware Decoder for 1080p MPEG-2, H.264, and VC-1 Playback;
- ‧Ultra-mini Size, 180 x 255 x 19 mm (L x W x H);
- ‧Support Intel Atom Processor;
- ‧Multi Mini-PCIe Slots for 3G, TV Tuner, or H.264 Optional Usage.
