Memory
| Supported memory clock speeds |
667, 800 MHz |
| Supported memory types |
DDR2-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Other features
| Hard drive size |
3.5 " |
| Number of processors installed |
1 |
Motherboard
| Supported processor frequency (max) |
1.66 GHz |
Storage
| Number of storage drives supported |
1 |
| Compatible memory cards |
Memory Stick (MS), MMC, SD, xD |
| Card reader integrated |
Y |
Processor
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| L2 cache |
1 MB |
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Graphics
| Graphics adapter family |
ATI |
Audio
| Audio system |
Realtek ALC858 |
Ports & interfaces
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Chipset |
Intel NM10 |
| Graphics |
Mobility Radeon HD 4330 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

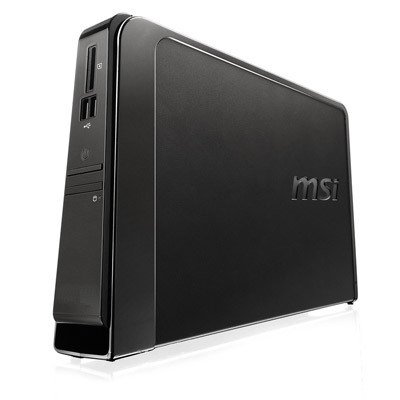

6668-004BUS, Intel Atom D510, Intel NM10 Express, 2 x SO-DIMM, ATI Radeon HD 4330, 8ch. HDA, Gigabit Lan, 3 x USB2.0, 65W PSU, 1.81kg, Black
VESA-mountable Nettop Barebone without ODD Drive Bay
- Intel® 1.66GHz Dual-core Atom™ D510 processor on board
- Intel NM10 Express chipset
- Support Windows® 7
- ATI Radeon HD 4330 discrete graphics (Support DirectX 10.1 under Windows® 7)
- 2 SO-DIMM slots for DDR2 800/667 MHz memory, up to 4GB
- 1 x Gigabit LAN
- 1 x VGA and 1 x HDMI (Support Full HD 1080p)
- Internal WiFi antenna included
- 3 x USB2.0, 1 x USB2.0/e-SATA Combo, 1 x 6-in-1 Card Reader, 8ch HD Audio
- 1 x 3.5” HDD drive bay
- Low acoustics/thermal, average 24dB
- L-type holder included to support VESA mount
- Space saving, less than 4 liters
- Energy Star 5.0 and EuP compliance
