Memory
| Non-ECC |
Y |
| Supported memory clock speeds |
2133, 2400 MHz |
| Supported memory types |
DDR4-SDRAM |
| Memory voltage |
1.2, 1.35, 1.25 V |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Supported memory module capacities |
16GB |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
Internal I/O
| Serial port via internal header |
Y |
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
6 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
| Number of M.2 (M) slots |
1 |
| Front panel connector |
Y |
Performance
| Motherboard form factor |
Micro ATX |
| Linux operating systems supported |
Y |
| Motherboard chipset family |
Intel |
| Supported storage drive types |
HDD, SSD |
| Intel Extreme Memory Profile (XMP) |
Y |
| Component for |
PC |
BIOS
| BIOS type |
UEFI |
| Clear CMOS jumper |
Y |
Expansion slots
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
2 |
Back panel I/O ports
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Processor
| Intel Core i3/i5/i7 series |
i3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx |
Additionally
| Chipset |
Intel B250 |
| Intel Optane technology ready |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

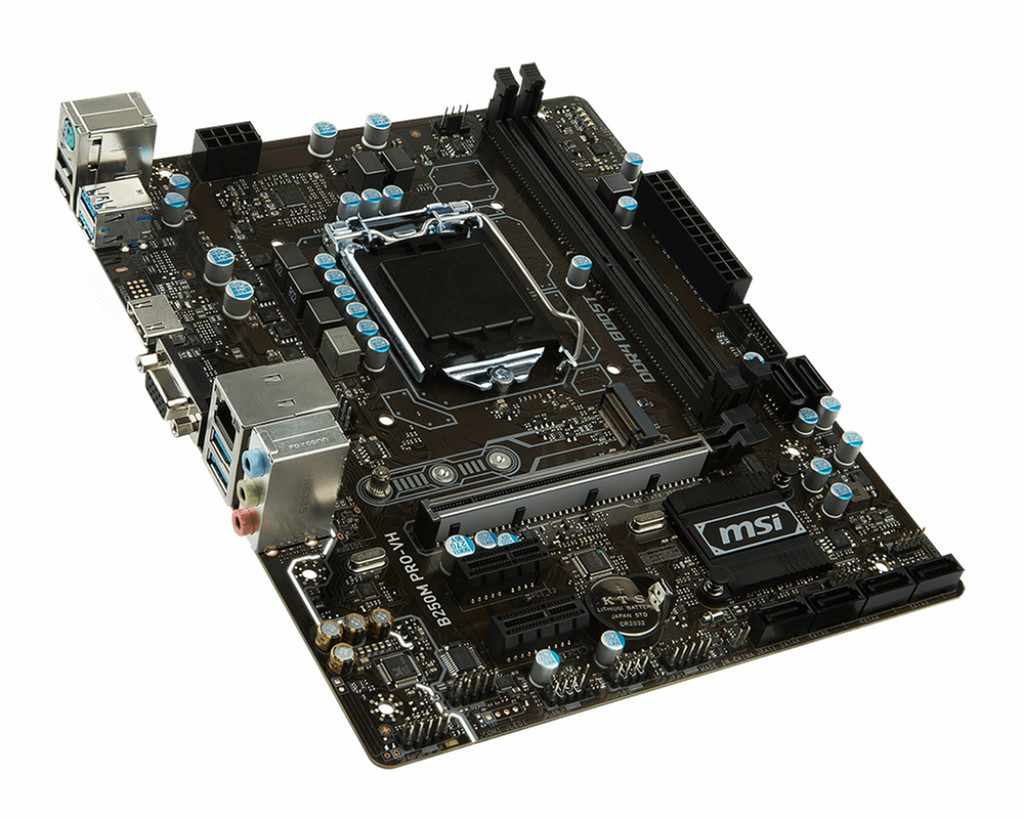

Socket LGA1151, Intel B250 Chipset, 2 x DDR4 up to 32GB, 1 x Gigabit Ethernet, 6 x SATA III, 1 x M.2, 1 x PCI-Express x16, 2 x PCI-Express x1
MAKING YOUR LIFE EASIER IS OUR BUSINESS
Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance.
STAY COOL
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.
BE THE FIRST TO BOOT UP IN THE MORNING
This MSI product supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you noticeable benefits. Start programs faster, load data faster and increase productivity.
PROFESSIONAL SOUND QUALITY
Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.
STABLE, SECURE & FAST NETWORKING
Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability.
DESIGNED FOR LIMITLESS TUNING
Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
MAXIMIZE YOUR USB DEVICE PERFORMANCE
Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!
APPS TO GREATLY IMPROVE EFFICIENCY
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and time spent.
BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.
TUNE YOUR SYSTEM WITH CLICK BIOS
The extensive features in MSI CLICK BIOS let you fine-tune your system to deliver reliable and maximum performance. From M-Flash for easy BIOS flashing to advanced data protection & system security, CLICK BIOS provides the tools to fully protect and optimize your system. MSI CLICK BIOS is faster than ever. By reducing the use of graphics in the UEFI shell, it boots faster, reacts instantl
