Processor special features
Intel Rapid Storage Technology enterprise |
Y |
Intel® Virtualization Technology (Intel® VT) |
VT-d |
Intel vPro Technology |
Y |
Intel Trusted Execution Technology |
Y |
Performance
Audio output channels |
7.1 channels |
Networking
LAN controller |
Intel I219-V |
Ethernet interface type |
Gigabit Ethernet |
Wi-Fi |
N |
Expansion slots
PCI Express x16 (Gen 3.x) slots |
3 |
PCI Express x1 (Gen 3.x) slots |
3 |
Internal I/O
Number of SATA III connectors |
6 |
Parallel connector |
Y |
CPU fan connector |
Y |
Chassis intrusion connector |
Y |
Serial port headers |
1 |
ATX Power connector (24-pin) |
Y |
TPM connector |
Y |
USB 3.0 (3.1 Gen 1) connectors |
2 |
USB 2.0 connectors |
2 |
Technical details
Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
Form factor |
ATX |
Intel Rapid Storage Technology |
Y |
Back panel I/O ports
USB 3.1 (3.1 Gen 2) Type-C ports quantity |
1 |
PS/2 ports quantity |
2 |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
VGA (D-Sub) ports quantity |
1 |
DVI-D ports quantity |
1 |
Memory
Memory channels |
Dual |
Maximum internal memory |
64 GB |
Supported memory clock speeds |
2133 MHz |
ECC |
Y |
Number of DIMM slots |
4 |
Supported memory types |
DDR4-SDRAM |
Design
Component for |
Workstation |
Conflict Free |
Y |
Motherboard form factor |
ATX |
Storage controllers
Hard drive interface |
Serial ATA III |
Processor
Intel Xeon series |
E3-1200 |
Additionally
Chipset |
Intel C236 |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

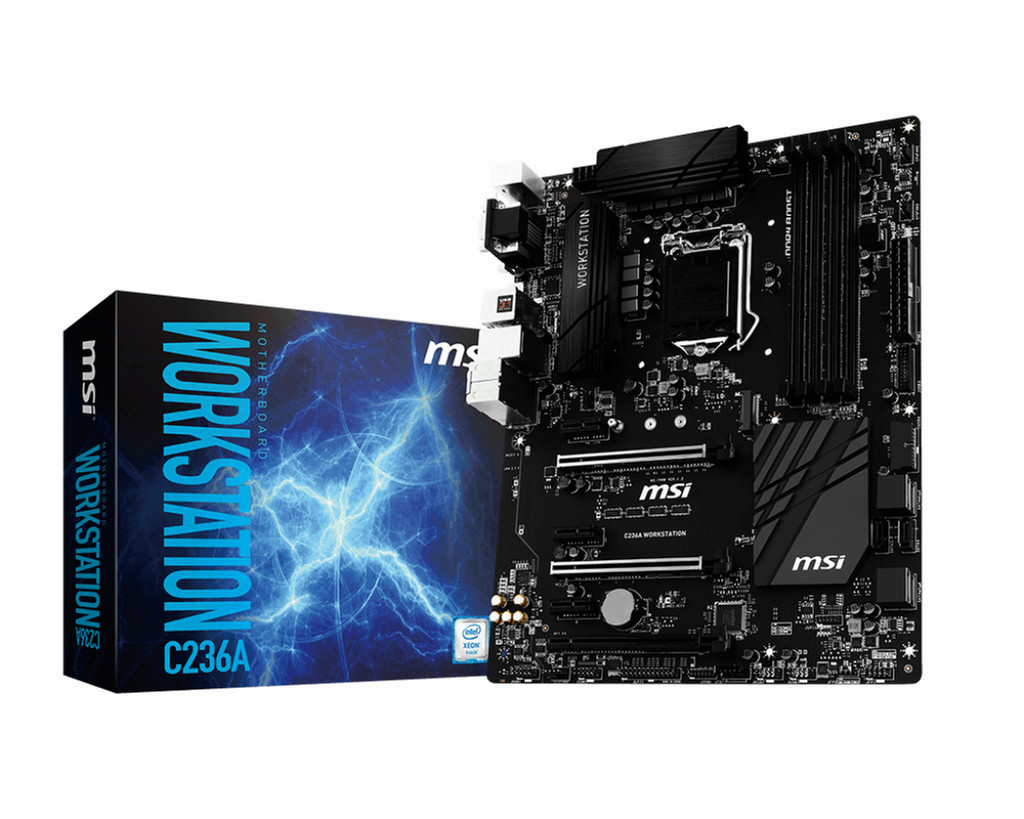

Chipset Intel C236, Socket LGA1151, DDR4, 64GB, 4096 x 2160, ATX
Unmatched memory performance and stability
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
Turbo M.2
Delivering speeds up to 32Gb/s using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection! Enjoy a blazing fast system boot up and insanely fast loading of applications and games with MSI motherboards.
Turbo U.2 Host Card (optional)
The U.2 Host Card delivers performance up to 32 Gb/s and allows support for next gen 2.5-inch SSDs using the U.2 connector. A redriver chip is added to increase data transfer speed.
THE ALL NEW, AWARD-WINNING CLICK BIOS 5
Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.
Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your system’s performance.
- Variety of options to boost your game performance
- Next gen UEFI BIOS with award winning design
- High-resolution multi language scalable font
- Easy to use
- Advanced overclocking
STABLE, SECURE NETWORKING
This MSI PRO Series motherboards features an Intel® i219V Gigabit network adapter.
This high quality networking solution is optimized for professional and multimedia use with outstanding performance to deliver a secure, stable and fast network connection.
Industry leading quality
M-CLOUD
MSI M-Cloud is a convenient and secure way of saving personal files in the cloud. M-Cloud simplifies complicated settings with a user friendly interface and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud can also turn your PC into an Access Point. You can easily share a wireless network or internet signal to other devices through just a few simple steps.
INDUSTRY LEADINGQUALITY COMPONENTS
DARK CHOKE
Perfect stability with improved power efficiency, even under the most extreme conditions.
DARK CAP
With their aluminum core design, Dark CAP`s has been a staple in high-end design mainboard designs and provides lower Equivalent Series Resistance (ESR)as well as its over-10-year lifespan.
HUMIDITY PROTECTION
Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.
HIGH TEMPERATURE PROTECTION
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.
CIRCUIT PROTECTION
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for MSI motherboards.
ESD PROTECTION
Each and every I/O port is protected against the hazards of Electro Static Discharge.
EMI PROTECTION
All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.
EASY DIAGNOSTIC
MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.
ENHANCED CPU OVERVOLTAGE PROTECTION
Onboard overvoltage protection prevents overvoltage and short-circuit damage of the CPU and other components. A red LED near the 24 pin CPU power connector let you know that overvoltage protection is activated for easier troubleshooting.
Optimized for multiple graphics cards
SLI /CrossFire support
This motherboard supports SLI / CrossFire. Optimal PCI-Express slot placement allows for better fitting and airflow.
That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an NVIDIA® SLI™ or AMD CrossFire™ setup
TOTAL FAN CONTROL
Total Fan Control gives you complete control of all your fans connected to the motherboard, through a revolutionary and easy to use interface.
- Full control of fans through 4-pin fan headers
- Real-time monitor fan speeds & temperatures
- Intuitive, easy to use application design
- Set profiles
- Log fan speed, voltage and temperature status
WHQL CERTIFIED. WINDOWS 10 READY.
Benefit from great compatibility and a worry-free user experience when using Microsoft Windows 8 / 8.1 or Windows 10 with MSI PRO Series motherboards.
MSI is world’s first motherboard manufacturer to receive official Microsoft Windows 10 WHQL certification. With a true testament to compatibility and performance, the MSI R&D team ensures a worry-free experience when using the latest version of Microsoft Windows on any MSI PRO Series motherboard.
Studio grade sound with AUDIO BOOST
With Audio Boost we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 6-channel Audio or high impendence headphones and truly dominate the game.
