Bandwidth
| Supported data transfer rates |
EEE 802.11b - CCK @ 5.5 & 11 Mbps, - DQPSK @ 2 Mbps, - DBPSK @ 1 Mbps / IEEE 802.11g - OFDM @ 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
Ports & interfaces
| Host interface |
CardBus |
| Internal |
N |
Protocols
| Data link protocols |
CSMA/CA ~ ACK (Half-Duplex) |
Other features
| Form factor |
32-bit CardBus |
| Compliance industry standards |
IEEE 802.11, IEEE 802.11b, IEEE 802.11g |
Networking
| Maximum operating distance |
350 m |
| Modulation |
CCK, DQPSK |
| Frequency band |
2.4 ~ 2.4835 GHz |
Additionally
| Output power |
14±1dBm |
| Transfer rate (Mbps) |
54 Mbit/s |
| Wireless technologies |
Wireless |

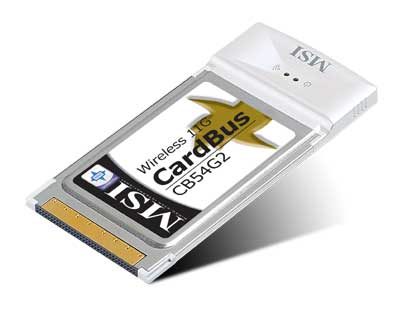

CB54G2, Wi-Fi, CardBus / 54Mbps / Windows® 98SE/ME/2000/XP
The MSI CB54G2 delivers up to 54Mbps transmission data rate in the 2.4GHz frequency. It works with IEEE 802.11g compliant devices and is capable of handling data-incentive applications including real-time
MPEG video streaming. In addition, the CB54G2 comes equipped with the ability to help prevent access to sensitive data on the network to secure over the air transmissions with 64/128-bit WEP encryption.
