Performance
| Motherboard form factor |
Micro ATX |
| Motherboard southbridge |
Intel ICH7 |
| Motherboard chipset family |
Intel |
| Audio system |
Realtek ALC888S |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
677, 800 MHz |
| Supported memory types |
DDR2-SDRAM |
| Memory voltage |
1.8 V |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |

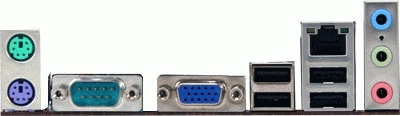

Back panel I/O ports
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| COM ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
4 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Number of SATA II connectors |
4 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
9.0 |
| Maximum graphics adapter memory |
384 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| Number of displays supported |
1 |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
2 |
Processor
| Processor system buses supported |
800, 1066, 1333, 1600 MHz |
Additionally
| Chipset |
Intel G31 |
| Graphics |
GMA 3100 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Socket 775, 2 x DDR2 667/800MHz max. 8GB, 1 x PCI-Ex16, 2 x PCI, 4 x SATAII 3Gb/s, 1 x IDE, Realtek® ALC888S 7.1Ch., Fast Ethernet, Micro-ATX
Super Charger
Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs.
Live Update 5
MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website.
Features
- Automatically Detect the BIOS/Driver/VGA/Utility Update
- Support Microsoft Windows XP/Vista/7 32/64bit
M-Flash
Compared to common motherboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
Features
- Backup/Restore Your BIOS to/from Any USB Flash Disk
- Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
- Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process
