Processor
Processor frequency |
1265 MHz |
CUDA cores |
384 |
Graphics processor family |
NVIDIA |
CUDA |
Y |
Maximum displays per videocard |
2 |
Processor boost clock speed |
1518 MHz |
Memory
Graphics adapter memory type |
GDDR5 |
Memory bus |
64 bit |
Memory clock speed |
6008 MHz |
Discrete graphics adapter memory |
2 GB |
Performance
DirectX version |
12.0 |
OpenGL version |
4.5 |
TV tuner integrated |
N |
HDCP |
Y |
Ports & interfaces
Interface type |
PCI Express x16 3.0 |
DisplayPorts quantity |
1 |
HDMI ports quantity |
1 |
Power
Minimum system power supply |
300 W |
Design
Number of slots |
1 |
Form factor |
LP |
Cooling type |
Passive |
Additionally
Graphics controller |
GeForce GT 1030 |

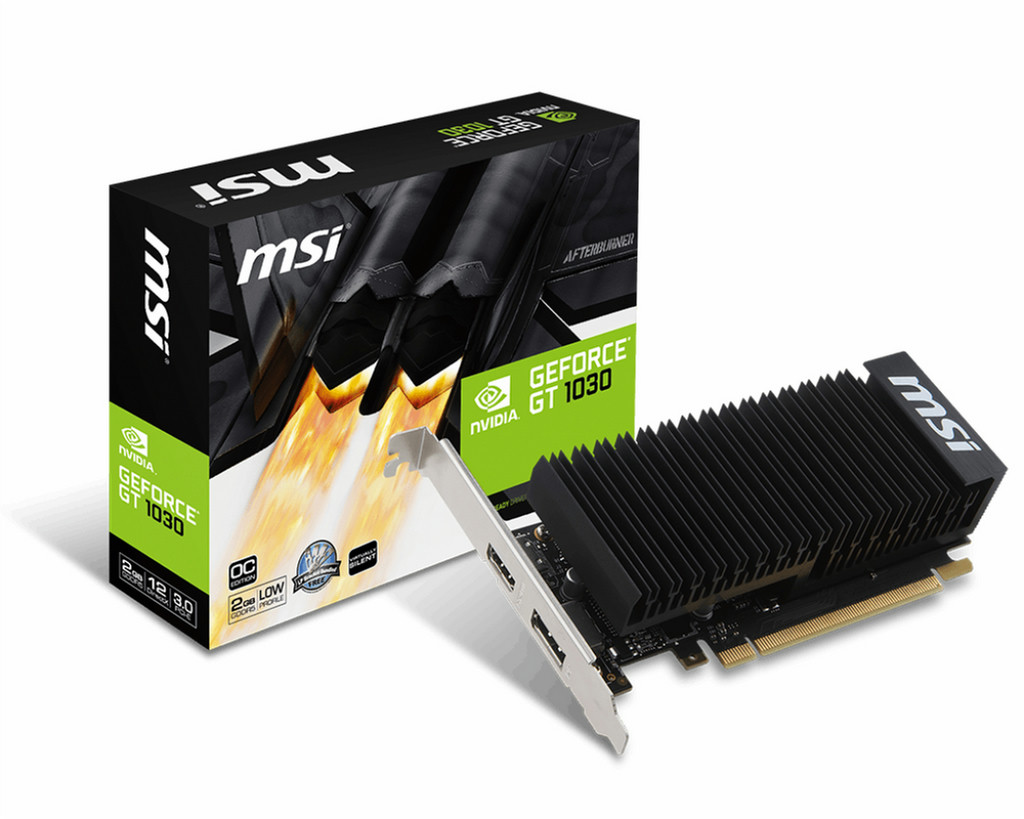

NVIDIA GeForce GT 1030, 2GB, GDDR5, 64-bit, 1518 MHz (Core), PCI Express 3.0 x16 (uses x4), 300W, 1 x HDMI, 1 x DisplayPort, 302 g
STEP UP TO BRILLIANT PC GRAPHICS
Accelerate your entire PC experience with the fast, powerful NVIDIA® GeForce® GT 1030 graphics card. Gaming. HD video and picture editing. The GT 1030's award-winning NVIDIA Pascal™ architecture, powerful graphics engine, and state-of-the-art technologies give you the performance upgrade you need to drive today’s most demanding PC applications.
THE LATEST GAMING TECHNOLOGIES
Pascal is built to meet the demands of next generation displays. It features NVIDIA GameWorks™ technologies for extremely smooth gameplay and cinematic experiences.
PERFORMANCE
Pascal-powered graphics cards give you superior performance and power efficiency, built using ultra-fast FinFET and supporting DirectX™ 12 features to deliver the fastest, smoothest, most power-efficient gaming experiences.
GEFORCE EXPERIENCE
The easiest way to optimize your games and keep your drivers up to date, the GeForce Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you'll be able to update the driver directly, without leaving your desktop.
LOW PROFILE DESIGN
Low profile design saves more spaces and can build slim or smaller system easier.
MILITARY CLASS 4 COMPONENTS
One of the deciding factors in performance is the quality of the components used. That is why MSI only uses MIL-STD-810G certified components for graphics cards. These components have proven durable enough to withstand the torturous circumstances of extreme gaming and overclocking for extended usage.
AFTERBURNER
MSI Afterburner is the world’s most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.
