Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Intel Extreme Memory Profile (XMP) |
Y |
| Audio system |
Realtek ALC887 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
2133 MHz |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
16 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Internal I/O
| USB 2.0 connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
| 12V power connector |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
1 |
Processor
| Intel Core i3/i5/i7 series |
i3-6xxx, i5-6xxx, i7-6xxx |
Additionally
| Chipset |
Intel H110 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

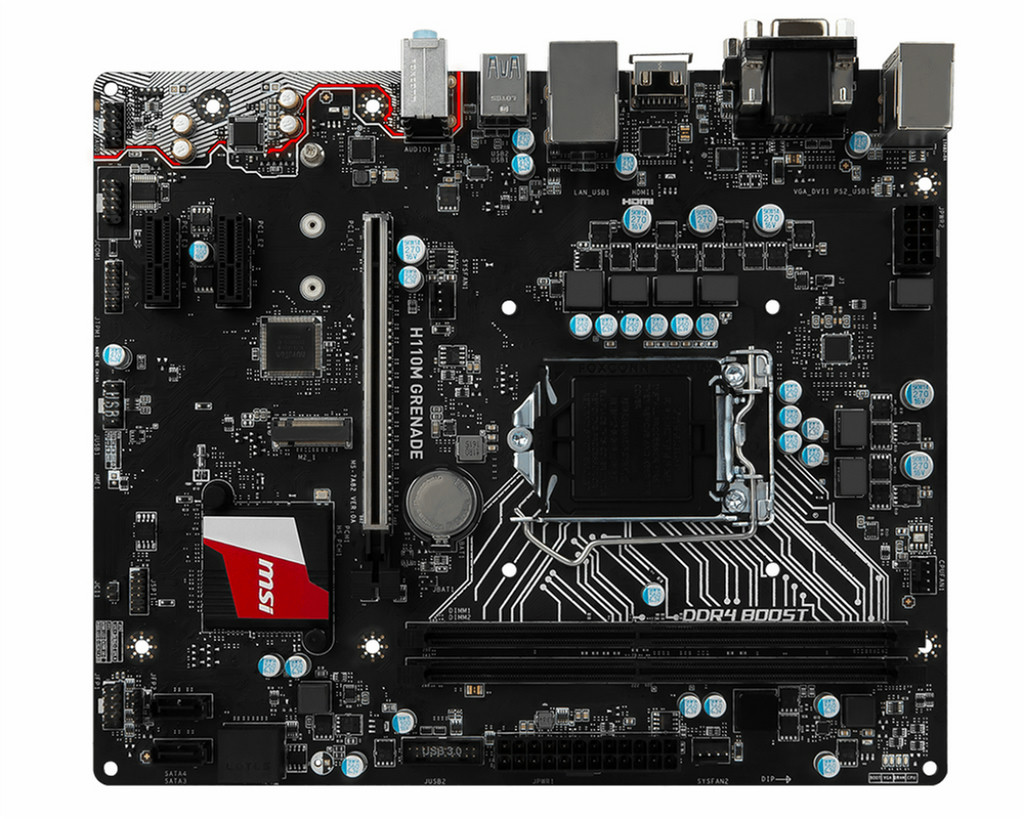

Intel Core i3/i5/i7/Pentium/Celeron, LGA1151, Intel H110, 2 x DDR4, Realtek ALC887, M-ATX, 244 x 205 mm
NON-STOP GAMING
Equip yourself with the MSI Arsenal GAMING Series motherboards to improve your game. MSI Arsenal GAMING Series motherboards are covered in full black camouflage with LED ambient lights and is packed with gaming features, making them the perfect weapon to dominate the battlefield.
Unmatched memory performance and stability
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
Gaming optimized bandwidth management
Dedicated to giving you the best online gaming experience with optimized traffic prioritization and low latency, MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games.
MSI GAMING LAN Manager
Automatically prioritizes games above other applications
Allows you to change applications' traffic priority
Allows you to customize bandwidth for each application
GAMING LED EFFECT
The Arsenal GAMING Series motherboards come with LEDs on the back of the motherboard to let you fully enjoy the gaming side of things. Like war paint, turn them on for the full Arsenal GAMING experience and you are ready to dominate any battlefield.
Studio grade sound with AUDIO BOOST
With Audio Boost we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 6-channel Audio or high impendence headphones and truly dominate the game.
GAMING HOTKEY
Gaming Hotkey enables more functionality using your own keyboard. Simply assign functions to any key and launch your favorite games, load profiles with the push of a single button. The possibilities are endless!
MSI USB 3.1 GEN1
Transfer your favorite games, music and movies over Type-C connector more convenient than ever. USB 3.1 Gen1 enables lightning-fast transfer speeds up to 5Gb/s!
2X FRONT USB 3.1 GEN1
With a clever placed USB 3.1 Gen1 front pin header, available on MSI motherboards, you can connect up to 2 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports on the rear.
