Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
Realtek ALC892 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Memory voltage |
1.5 V |
| Memory channels |
Dual |
| Supported memory module capacities |
1GB, 2GB, 4GB, 8GB |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
Other features
| Controller (2nd) interface type |
SATAII 3Gb/s |
| Controller interface type |
SATAIII 6Gb/s |
Internal I/O
| USB 2.0 connectors |
4 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| Number of IEEE1394 connectors |
1 |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
4 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
3 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| On-board graphics adapter |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Firewire (IEEE 1394) ports |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
3 |
| PCI Express slots version |
2.0 |
Additionally
| Chipset |
Intel H67 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

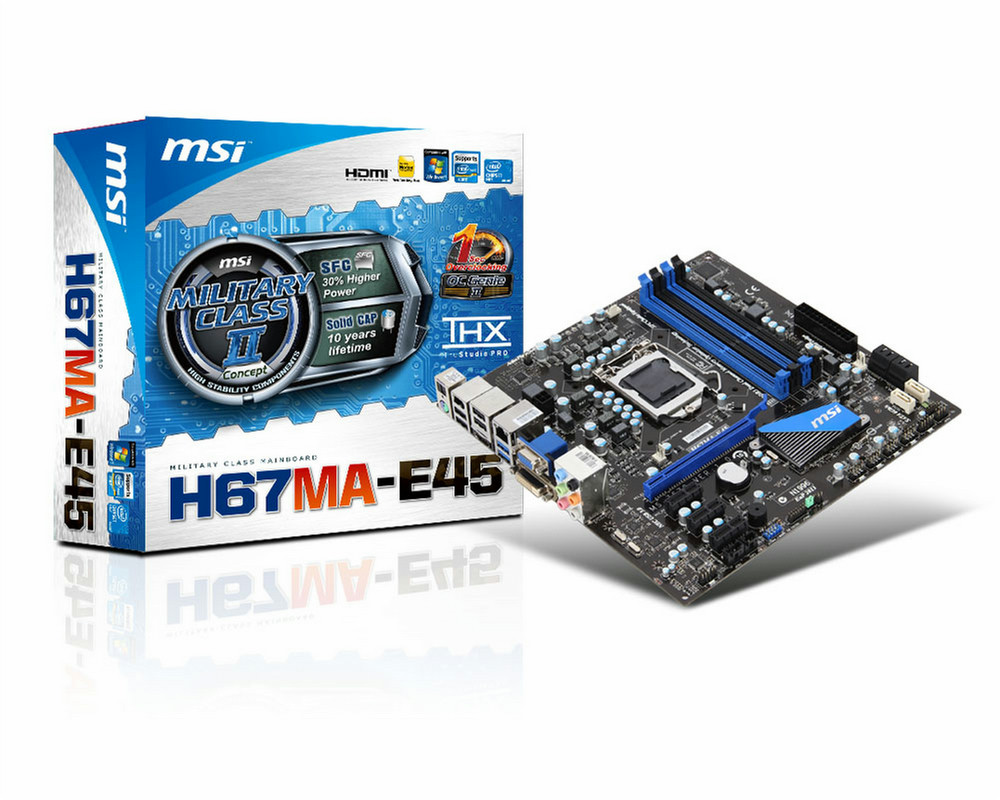

H67MA-E45 - Intel LGA1155, Intel® H67, 4 x DDR3 1066/1333 DRAM 32GB Max, 1 PCI Express gen2 x16, 3 PCI Express gen2 x1, SATAII, SATAIII, Gigabit Ethernet, M-ATX
- A high-fidelity sound reproduction standard
- Accurately reproduce the fullest audio experience of movie, music and game soundtracks
- Instant MB info monitor
- Green Power: CPU Phase, system fan speed controlled with max power saving
- Smart Mode: 4 instant OC modes
- User friendly & totally free applications
- Power on to run applications in 25 seconds
- Multi-language interface support
- APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU.
- Saving Power under Variable Loading.
- Power Usage More Efficiency.
- Revolutionary SuperSpeed USB 3.0, 10x faster than USB 2.0
- Up to 5Gbps bandwidth, boost data transfer rate between PC and USB device
- Support next-generation SATAIII, up to 6Gbps bandwidth
- Double the data transfer rate of SATAII (3Gbps)
- Universal charger utility for Apple iPad, iPhone, iPod
- Compatible with all MSI Mainboards
- Supports 1080 Full-HD multimedia playback
- A perfect connection to HD visual effects
- Better casual gaming experience with DirectX 10 support
- Faster and Flexible and instant
- If BIOS crash, it still can boot from USB Drive
- Update BIOS from USB Drive by M-Flash Fucntion
- The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc
- Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers
- support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs
The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.
Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.
