Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio system |
Realtek ALC887 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333, 1600 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
BIOS
| BIOS type |
UEFI |
| Back-to-BIOS button |
Y |
| Clear CMOS jumper |
Y |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
6 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
6 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
3 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
2 |
| PCI Express x1 (Gen 2.x) slots |
2 |
Additionally
| Chipset |
Intel H97 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

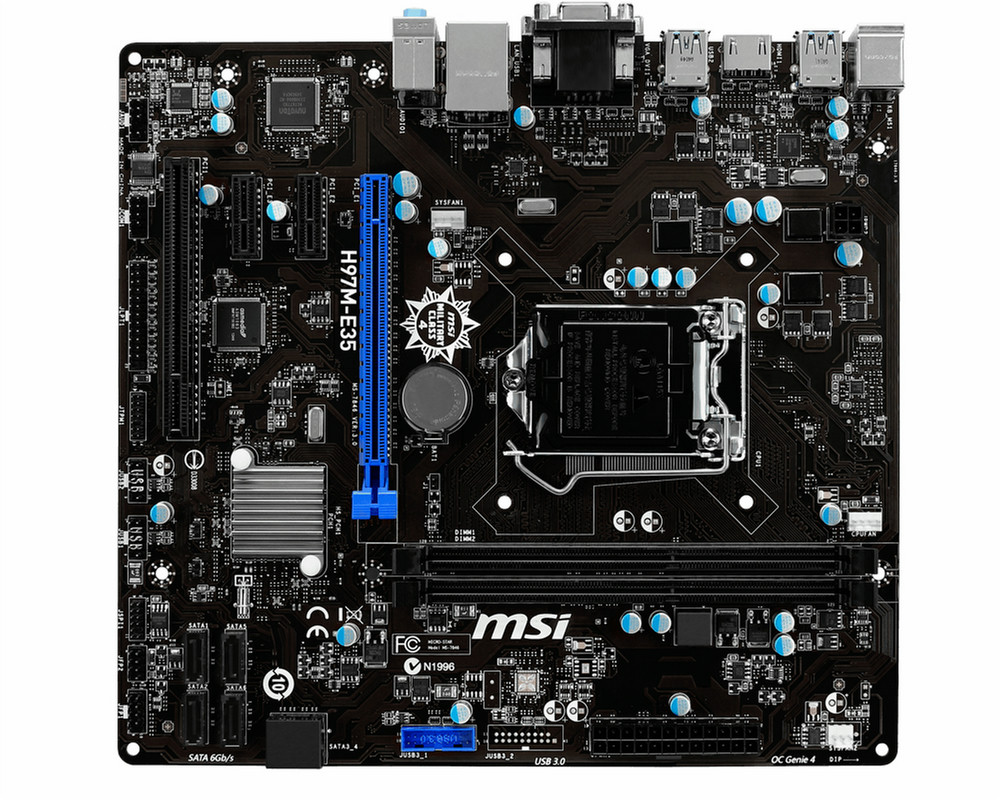

Intel H97 Express, DDR3 1066/1333/1600 MHz, 1150 Sockel, DIMM x 2, non-ECC, un-buffered, PCIe x16, 2 x PCIe 2.0 x1, PCI, PS/2 x 2, VGA, DVI-D, HDMI, 4 x USB 3.0, 2 x USB 2.0, LAN, Micro-ATX
Military Class 4
Military Class 4 is the next step in high quality components. The Dark Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.
Dark Choke
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.
SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.
OC Genie 4
With the one-second overclocking option OC Genie we're giving you even more performance. Just hit the button and your PC gets another adrenalin shot straight away. Give your system an awesome performance boost with ease.
CLICK BIOS 4
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.
Software
COMMAND CENTER
MSI's Command Center software is a very powerful tool to push your motherboard to the max. With a very intuitive touch ready interface, Command Center allows users to tune settings to increase system stability, maximize overclocking performance and adjust cooling features.
LIVE UPDATE 6
MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.
UNLIMITED RAMDISK
MSI Command Center integrates an unlimited RAMdisk. With a RAMdisk you can create a virtual drive from your system memory enabling speeds 20x faster than a modern SSD.
- Speed up system performance
- Load complete game images
- Speed up games, apps and browser
Intel Small Business Advantage
Intel® Small Business Advantage is a total solution to deliver the enhanced security & productivity for PCs that small businesses demand.
SECURITY
Software Monitor
Keeps Critical Software Runing.
Data Backup and Restore
Protects Small Business Data.
USB Blocker
Enhances Small Business Security.
PRODUCTIVITY
PC Health Center
Keeps PCs Running at Their Peak.
Energy Saver
Lowers Energt Usage.
Intel® Wireless Display
Enhances Employee Productivity
SMART UTILITIES
The MSI Smart Utilities application helps to easily setup, configure and boost your systems’ performance and more through 3 Intel® key technologies:
- Intel® Rapid Start
- Intel® Smart Response
- Intel® Smart Connect
FAST BOOT
No more seamless waiting for your O/S to be loaded! MSI Fast Boot helps to make your system boot lightning fast. MSI Fast Boot also features a GO2BIOS button. Simply click it to restart your PC and go straight to the system BIOS.
4K UHD SUPPORT
Enjoy awesome 4K UHD video playback with MSI 9 series motherboards. MSI motherboards that are equipped with HDMI port(s) support the latest 4K UHD (2160p ultra-high definition) resolution to provide an unprecedented breathtaking visual experience.
HDMI
Enjoy the awesome HD video playback now! MSI motherboards that equip with HDMI port(s) supports the latest and the most innovative signal outputs to provide an unprecedented visual experience.
