Ports & interfaces
| Expansion slots |
1 x PCI Express x8 |
Memory
| Maximum internal memory |
8 GB |
| ECC |
Y |
| Internal memory type |
DDR2-SDRAM |
Processor
| Number of processors installed |
2 |

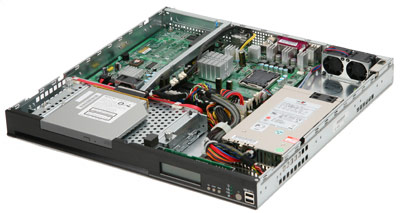

P1-105-A2
CPU
• Supports Intel® Core™ 2 Duo / Pentium® 4 / Pentium® D processors in LGA775 package
• Supports Intel® Hyper-Threading Technology
Chipset
• North Bridge: Intel® 3000
• South Bridge: Intel® ICH7R
Main Memory
• Supports four unbuffered ECC DIMMs of 1.8 Volt DDR2 SDRAM
• Supports up to 8GB memory size
• Supports Dual-Channel DDR2 533/667 memory interface
Slots
• One PCI Express x8 slot (this PCIE_1 slot will accept x8 cards and run at x8
speeds / with an extra PCIE_3 slot for MSI proprietary riser cards / PCI Express
Bus specification v1.0a compliant)
HDD Interface
• IDE
- Ultra DMA 66/100 IDE controller integrated in ICH7R
- Supports PIO, Bus Master operation modes
- Can connect up to two Ultra ATA drives
• SATA
- SATA II controller integrated in ICH7R
- Up to 300MB/sec data transfer rate
- Can connect up to two SATA devices
- Supports AHCI controller with SATA RAID 0, SATA RAID 1
Onboard Peripherals
• Front I/O
- LCD Front Panel
- Slim CD-ROM Drive
- LED Indicators
- Power Button
- USB Ports
- LCD Control Buttons
Rear I/O
- Parallel Port
- PS/2 Mouse/Keyboard Port
- Serial Port
- VGA Port
- USB Ports
- Gigabit LAN Jacks
Onboard Graphics
- XGI Z7 Graphics Controller
- Onboard 16MB Video SDRAM
Onboard LAN
• Supports Gigabit Ethernet by Intel 82573V/L
Certification
• Safety: UL, cUL, BSMI
• EMI: CE/FCC Class A, BSMI
Power Management Features
• Wake up on LAN (WOL), wake up on serial ring, wake up on PCI
• RTC alarm and wake up
• Wake up on keyboard/mouse/USB from S1
• Supports ACPI S1, S4, S5 function
System Management
• SMBus (I2C)
- Temperature, voltage, and fan monitors
- Chassis intrusion
