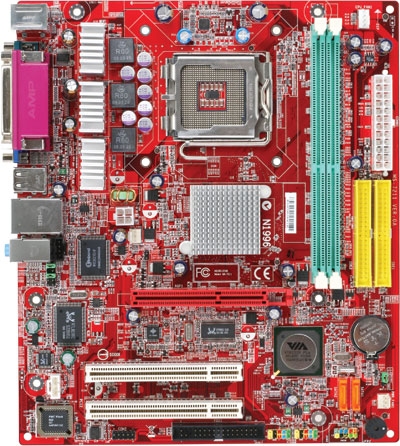

MSI PM8M3-V Socket T (LGA 775) Micro ATX motherboard

MSI PM8M3-V Socket T (LGA 775) Micro ATX motherboard

MPN: PM8M3-V BULK
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor Micro ATX

Back panel I/O ports

Parallel ports quantity 1
Serial ports quantity 1
PS/2 ports quantity 2
Headphone outputs 1
Microphone in Y
VGA (D-Sub) ports quantity 1

Other features

Graphics controller S3 UniChrome Pro

Internal I/O

USB 2.0 connectors 2
S/PDIF out connector Y
Number of SATA connectors 2
ATX Power connector (24-pin) Y
CD/AUX audio in Y
CPU fan connector Y
Number of COM connectors 1
Chassis intrusion connector Y
Front panel audio connector Y

Memory

Maximum internal memory 2 GB

Expansion slots

Expansion slots 1 x AGP 8x/4X \n2 x PCI 2.2 32-bit PCI

Networking

Networking features 10Mb/s & 100MB/s

Additionally

Ethernet LAN (RJ-45) ports quantity 1
PM8M3-V, Intel® Pentium 4 / Celeron D, LGA775, FSB 800MHz, DDR DIMM, Audio, LAN, PCB 1.0, Non-RoHS version, Bulk - Supports Intel® Pentium 4 / Celeron D processors in LGA775 package.
- Supports up to Pentium 4 5XX, 6XX and Celeron D 3xx sequence processor.
- Supports Intel Hyper-Threading technology.
- Supports up to 3.8GHz, FSB@800/533MHz.
Chipset
VIA® P4M800CE Chipset
- P4 processor FSB 800MHz.
- DDR SDRAM memory DDR 333/400MHz.
- 32-bit AGP (66MHz) for 8x/4x mode.
- Supports 8X V-Link.
VIA® VT8237R plus Chipset
- Integrated Hardware Sound Blaster/Direct Sound AC'97 audio.
- Dual channel Ultra DMA 66/100/133 master mode EIDE controller.
- Integrated USB 2.0 controller.
- ACPI & PC2001 compliant enhanced power management.
