Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
Realtek ALC888 |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Floppy disk drive connector |
Y |
| CD/AUX audio in |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
128 MB |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
| Controller type |
VIA P4M900 |
Back panel I/O ports
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Networking
| Networking features |
10/100 Fast Ethernet |

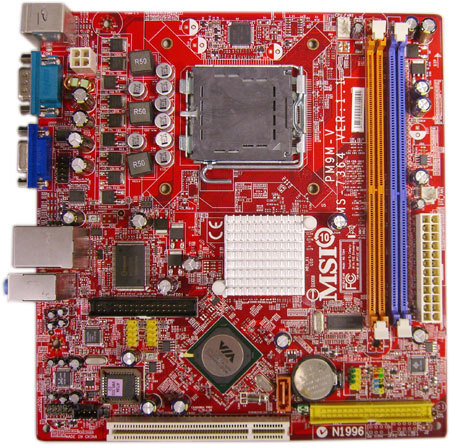

MSI PM9M-V Socket 775/1066MHz FSB/DDR 400/DDR2 667/VGA onboard/5.1 Audio Realtek/Lan
CPU
- Supports Socket 775 for Intel P4 3xx/ 5xx/ 6xx/ Pentium D, Celeron D, Core 2 Duo processors.
- Supports FSB 1066/800/533MHz.
- Supports 3/4 pin CPU Fan Pin-Header with Fan Speed Control.
- Supports EIST Technology.
- Supports Hyper-Threading (HT) Technology.
Chipset
VIA P4M900 Chipset
- Supports P4 processor FSB 1066/800/533MHz
VIA VT8237A Chipset
- Ultra DMA 33/66/100/133 master mode.
- ACPI & PC2001 compliant enhanced power management.
- Supports USB 2.0 up to 6 ports.
Main Memory
- DIMM1 supports unbuffered 240-pin DIMM of 1.8 Volt DDR2 400/533/667 SDRAM. (2GB Max)
- DIMM2 supports unbuffered 184-pin DIMM of 2.5 Volt DDR 266/333/400 SDRAM. (1GB Max)
Slots
- One PCI 2.2 32-bit PCI bus slot (support 3.3V/5V PCI bus interface).
On-Board IDE - An IDE controller on the VT8237A chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 133/100/66/33 operation modes.
- Can connect up to two IDE devices.
Serial ATA controller integrated in VT8237A.
- Up to 150MB/sec transfer rate.
- Can connect up to 1 Serial ATA drive.
Audio
- Chip integrated by Realtek ALC888.
- Flexible 6-channel audio with jack sensing.
- Compliant with Azalia 1.0 spec.
LAN
- Supports 10/100 Fast Ethernet by Realtek RTL8201CL.
