Performance
| Maximum airflow |
71.27 cfm |
| Minimum airflow |
19.79 cfm |
| Mean time between failures (MTBF) |
150000 h |
| Minimum air pressure |
0.16 mmH2O |
| Maximum air pressure |
2.09 mmH2O |
| Noise level (low speed) |
17.2 dB |
| Noise level (high speed) |
33.6 dB |
| Rotational speed (min) |
500 RPM |
| Rotational speed (max) |
1800 RPM |
| Type |
Cooler |
| Suitable for |
Computer case |
| Fan diameter |
120 mm |
Weight & dimensions
| Depth |
25.6 mm |
| Weight |
169 g |
| Width |
120 mm |
| Height |
120 mm |
500 - 1800 RPM, 19.79 - 71.27 CFM, 0.16 - 2.09 mm, 17.2 - 33.6 dB 120mm x 120mm

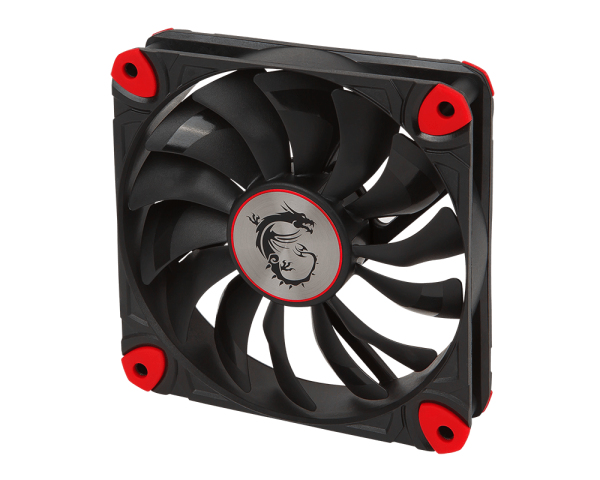

TORX FANS FOR MAX AIRFLOW
Using MSI’s patented TORX Fan technology which can also be found on our famous GAMING series graphics cards, a massive amount of airflow is generated for highly effective cooling.
Unique combination of two fan blades
Ensures that the cooler stays relatively silent under extreme load situations.
Dispersion Fan Blade
has a steeper curved blade which accelerates the airflow, increasing its effectiveness.
Traditional Fan Blade
pushes down a steady airflow to the massive heatsink below.
Double protection for enhanced performance
Hydro Dynamic Bearing
Spinning smoothly on self-lubricating HDB, the TORX fan has an extreme long lifespan under constant operation.
Integrated Anti-vibration Pad
Made from soft silicone rubber to reduce the vibration between fan and chassis, and prevent additional noise.
Dual Fans supported for CORE FROZR L
An additional set of 120mm fan brackets is included to support the use of dual fans in a push-pull configuration for additional cooling performance.
Fits in almost any case
Standard size 120mm TORX Fan is supported by all major case brands.
