Processor special features
Intel Flex Memory Access |
Y |
Execute Disable Bit |
Y |
Idle States |
Y |
Thermal Monitoring Technologies |
Y |
Intel Trusted Execution Technology |
N |
Intel Virtualization Technology (VT-x) |
Y |
Processor package size |
31 mm |
Processor ARK ID |
56056 |
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
Y |
CPU configuration (max) |
1 |
Embedded options available |
N |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
Y |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Supported instruction sets |
SSE4.x |
Intel Rapid Storage Technology |
N |
Graphics & IMC lithography |
32 nm |
Intel Fast Memory Access |
Y |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
N |
Intel® Turbo Boost Technology |
N |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Processor
Thermal Design Power (TDP) |
17 W |
Maximum number of PCI Express lanes |
16 |
Processor codename |
Sandy Bridge |
Memory clock speeds supported by processor |
1066, 1333 MHz |
Memory channels supported by processor |
Dual |
Conflict Free processor |
N |
PCI Express configurations |
1x8, 1x16, 2x4, 2x8 |
Tjunction |
100 °C |
FSB Parity |
N |
Processor frequency |
1.1 GHz |
ECC supported by processor |
N |
Memory types supported by processor |
DDR3-SDRAM |
Bus type |
DMI |
Memory bandwidth supported by processor (max) |
21.3 GB/s |
Maximum internal memory supported by processor |
16 GB |
Processor cache type |
L3 |
PCI Express slots version |
2.0 |
Number of processors installed |
1 |
Processor cache |
2 MB |
Processor lithography |
32 nm |
CPU multiplier (bus/core ratio) |
11 |
Processor operating modes |
64-bit |
Processor socket |
BGA 1023 |
Processor cores |
2 |
Networking
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Wi-Fi |
Y |
Cabling technology |
10/100/1000Base-T(X) |
Memory
Memory layout (slots x size) |
1 x 2 GB |
Internal memory type |
DDR3-SDRAM |
Memory slots |
1x SO-DIMM |
Maximum internal memory |
4 GB |
Internal memory |
2 GB |
Storage
Hard drive interface |
Serial ATA II |
Number of hard drives installed |
1 |
Hard drive size |
2.5 " |
Hard drive capacity |
320 GB |
Hard drive speed |
5400 RPM |
Total storage capacity |
320 GB |
Card reader integrated |
Y |
Storage media |
HDD |
Graphics
On-board graphics adapter dynamic frequency (max) |
800 MHz |
Number of displays supported (on-board graphics) |
2 |
On-board graphics adapter family |
Intel HD Graphics |
On-board graphics adapter |
Y |
Discrete graphics adapter model |
Not available |
On-board graphics adapter base frequency |
350 MHz |
Ports & interfaces
HDMI ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
DVI port |
N |
Line-in |
Y |
Line-out |
Y |
Headphone outputs |
1 |
S/PDIF out port |
Y |
Microphone in |
Y |
Additionally
InTru™ 3D Technology |
N |
Ethernet LAN connection |
Y |
Intel AES New Instructions |
N |
Ethernet LAN (RJ-45) ports quantity |
1 |
Chipset |
Intel NM70 Express |
Intel Celeron 847 (2M Cache, 1.10GHz), Intel NM70, 2GB DDR3, 320GB 5400rpm, Intel HD Graphics, Gigabit LAN, WLAN, 4-in-1 Card reader, 40W, no OS

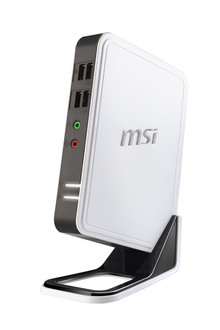

MSI has announced the launch of its new-generation Wind Box DC110. The only 35 mm thin Wind Box DC110 shines not only visually, but also low power consumption. With Intel® Celeron® 847, powerful graphics and liquid HD playback, it also offers computational power, one would expect at this small size in any way. The mini-PC is the space-saving solution for all computing tasks such as internet, email and office applications as well as TV, music, video and photo playback.
Low Power Consumption Mobile Platform
The Wind Box DC110 is equipped with Intel Mobile 847 1.1GHz ULV dual-core processor which provides impressive multi-tasking performance. The 847 Processor also has the characteristic of low power consumption and requires only 17W TDP to operate, which consumes much less power than the average desktop.
Compact with Windows 8
The MSI Wind Box Dc110 adopts with Windows 8 pre-installed is a totally new version of Windows than ever. Windows 8 breaks the traditional OS architecture of past Windows operating systems; whereas it applies a UI interface which allows users to interact with Windows 8 more instinctively and flexible.
Utilities I/O Ports: The best choice of Home Theater Desktop PC
The Wind Box DC110 provides one an HDMI (High-Definition Multimedia interface) and one VGA out which allows the units to be connected to a second monitor. They support dual-screen display and can also output the screen to a larger display device, such as a projector or a large-screen LCD TV, making the DC110 more versatile and more efficient. DC110 also provide SPDIF out can support 5.1 channel audio. Based on the utilities I/O ports, DC110 has capabilities to be the best choice of Home Theater PC.
Smart- An ultra-lightweight PC
The Wind Box DC110 has elegant lines and a slim, lightweight chassis. It is just 191.8 mm (W) × 150.93 mm (H) × 34.94 mm (D) in size, and weighs only around 830 grams. The DC110's unique "snowboard" style base makes it easy to store and move around; this ultra-mini PC is perfect for both home and office use. Tests have confirmed that, in regular operation, the Wind Top DC110 maintains average power consumption that does not exceed 40W, less than half that of most conventional PCs.
Smart multimedia file sharing
MSI has introduced the latest and exclusively developed SmartMedia link on the Wind Box DC110 using cloud technology, users can use their tablet, laptops, TVs that support DLNA, and mobile handsets on the same Wi-Fi and LAN network to play videos and music or display photos instantaneously via SmartMedia link.
