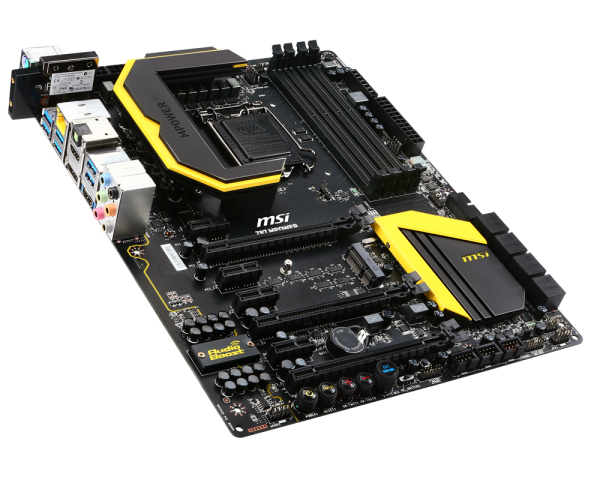

MSI Z87 MPOWER Intel Z87 Socket H3 (LGA 1150) ATX motherboard

MSI Z87 MPOWER Intel Z87 Socket H3 (LGA 1150) ATX motherboard

MPN: 7818-003R
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor ATX
Motherboard chipset family Intel
Trusted Platform Module (TPM) Y
PC health monitoring CPU, FAN, Temperature
Processor with Intel Graphics Technology required Y
Audio system Realtek ALC1150
Component for PC
Cooling type Passive

Memory

Supported memory clock speeds 1066, 1200, 1300, 1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800, 3000 MHz
Non-ECC Y
ECC N
Unbuffered memory Y
Supported memory types DDR3-SDRAM
Memory channels Dual
Memory slots type DIMM
Number of memory slots 4
Maximum internal memory 64 GB

Processor

Maximum number of SMP processors 1

BIOS

BIOS type UEFI
Clear CMOS button Y
Clear CMOS jumper Y
BIOS switch button Y

Internal I/O

USB 2.0 connectors 3
ATX Power connector (24-pin) Y
TPM connector Y
USB 3.0 (3.1 Gen 1) connectors 1
Number of SATA III connectors 8
EPS power connector (8-pin) Y
CPU fan connector Y
Chassis intrusion connector Y
Number of chassis fan connectors 4
Front panel audio connector Y

Networking

Wake-on-LAN ready Y
Bluetooth version 4.0
Wi-Fi Y
Bluetooth Y

Back panel I/O ports

WiFi-AP antenna jack 2
PS/2 ports quantity 1
S/PDIF out port Y
Microphone in Y
DisplayPorts quantity 1
USB 3.0 (3.1 Gen 1) Type-A ports quantity 6
HDMI ports quantity 2

Graphics

On-board graphics adapter Y
Graphics adapter family Intel
Discrete graphics support Y
HDCP Y

Expansion slots

PCI Express x16 slots 3
PCI Express x1 slots 4
PCI Express configurations 1x4, 1x8, 1x16
PCI Express slots version 2.0, 3.0

Packaging content

Drivers included Y
Quick installation guide Y

Additionally

Chipset Intel Z87
Intel HD Audio Technology Y
Graphics HD Graphics
Ethernet LAN connection Y
Ethernet LAN (RJ-45) ports quantity 1
Z87 MPOWER, LGA 1150, Intel Z87, 4 x DDR3 3000-1066MHz, Intel HD Graphics, 3 x PCI Express x16 (2-Way NVIDIA SLI, 3/2-Way AMD CrossFire), 8 x SATA 6.0Gb/s, Killer E2205 GbE LAN, Intel WiDi, 802.11 b/g/n, Bluetooth 4.0, UEFI BIOS, ATX - Supports 4th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket.
- Supports DDR3-3000(OC) Memory.
- Supports USB 3.0 + SATA 6Gb/s.
- 16 Phase DigitALL Power Design.
- Multi-GPU: NVIDIA SLI & AMD CrossFire Support.
- OC Certified: Military Class Burn-in Test Passed.
- Military Class 4: Top Quality & Stability.
- OC Genie 4: Overclock in 1 Second.
- Click BIOS 4: Easily Fine-tune Your System.
- PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand.
- Audio Boost: Reward Your Ears with True Quality.
- Killer Ethernet: Kill Your Lag.
- Sound Blaster Cinema: Realistic Surround Sound Experience.
- Lucid Virtu MVP 2.0: Uncompromised Game Response Performance.
- Wi-Fi 802.11n, Bluetooth 4.0, Intel® Wireless Display.
