Performance
| Motherboard form factor |
Extended ATX |
| Motherboard chipset family |
Intel |
| Audio system |
Realtek ALC1150 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333, 1600, 1866, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 3000 MHz |
| Non-ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Internal memory |
32 GB |
BIOS
| BIOS memory size |
128 MB |
| BIOS type |
AMI |
| Clear CMOS button |
Y |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
2 |
| Front panel audio connector |
Y |
Networking
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
5 |
Back panel I/O ports
| PS/2 ports quantity |
1 |
| S/PDIF out port |
Y |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
8 |
| HDMI ports quantity |
1 |
Additionally
| Chipset |
Intel Z97 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

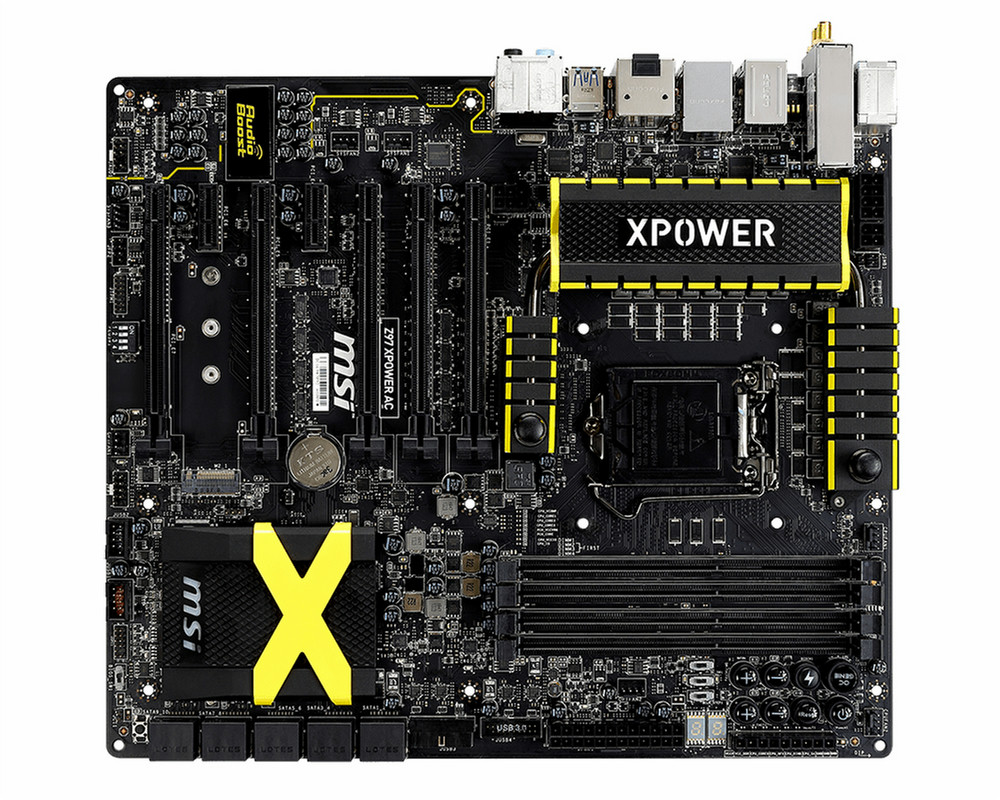

Intel Z97 Express Chipset, DDR3 1066-3300 DRAM, 32GB Max, 4 x USB 3.0, 6 x USB 2.0, Gigabit LAN, Wi-Fi/Bluetooth, E-ATX Form Factor, 9 mounting holes
- Supports 4th and 5th Gen Intel Core/Pentium/Celeron processors for LGA 1150 socket
- Supports DDR3-3300(OC) Memory
- M.2 + USB 3.0 + SATA 6Gb/s
- 4-way Multi-GPU: 4-way NVIDIA SLI & AMD CrossFire Support
- 16 Phase DigitALL Power Design
- OC Certified: Military Class Burn-in Test Passed
- Enhanced Thermal Design & Water Cooling Heatsink
- OC Engine: For More Flexible BCLK Adjustments
- V-Check Points 2: 3 multi-meters at the same time
- Delid Die Guard: Way to Break World Record
- VGA Cease Fire: Easy to Disable the VGA Card via Physical Switch
- Guard-Pro: Improved Protection and Power Efficiency
- Military Class 4: Top Quality & Stability
- OC Essentials: The Most Convenient Tools while Breaking the Record
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- Command Center: Control & Customize Your PC Settings
- Wi-Fi 802.11 ac, Bluetooth 4.0, Intel Wireless Display
No Limits
The MSI Overclocking motherboards are designed based on four principles:
- Continuous implementation of professional overclockers' feedback
- Continue MSI's leading position in power efficiency and stability
- The best overclocking tools
- Infuse the DNA of MSI's LIGHTNING graphics cards
Changing the overclocking game
- OC Certified
- Built with LIGHTNING DNA
- Enhanced components
- Enhanced power
- Enhanced thermal design
- Water cooling heatsink
- Military Class components
- Extreme OC socket design
- OC PCB
- Optimized overclocking BIOS
- OC Essentials
- DigitALL power PWM
OC Certified
OC Certified is a military class burn-in test for motherboards. Running Prime95 for over 24 hours with a highly overclocked CPU is already a stressing endeavor, but removing all airflow from the motherboard ensures that only the best motherboards survive. If a motherboard can survive this, it can survive any overclocking situation.
MSI Overclocking motherboards are equipped with all the necessary features to make sure you get the most out of your system. From the Enhanced PWM with a large amount of power phases and Thermal Design that give you the best stability, to all the easy features that ensure that you don't have to perform a lot of tricks to get great stability in your quest for performance.
